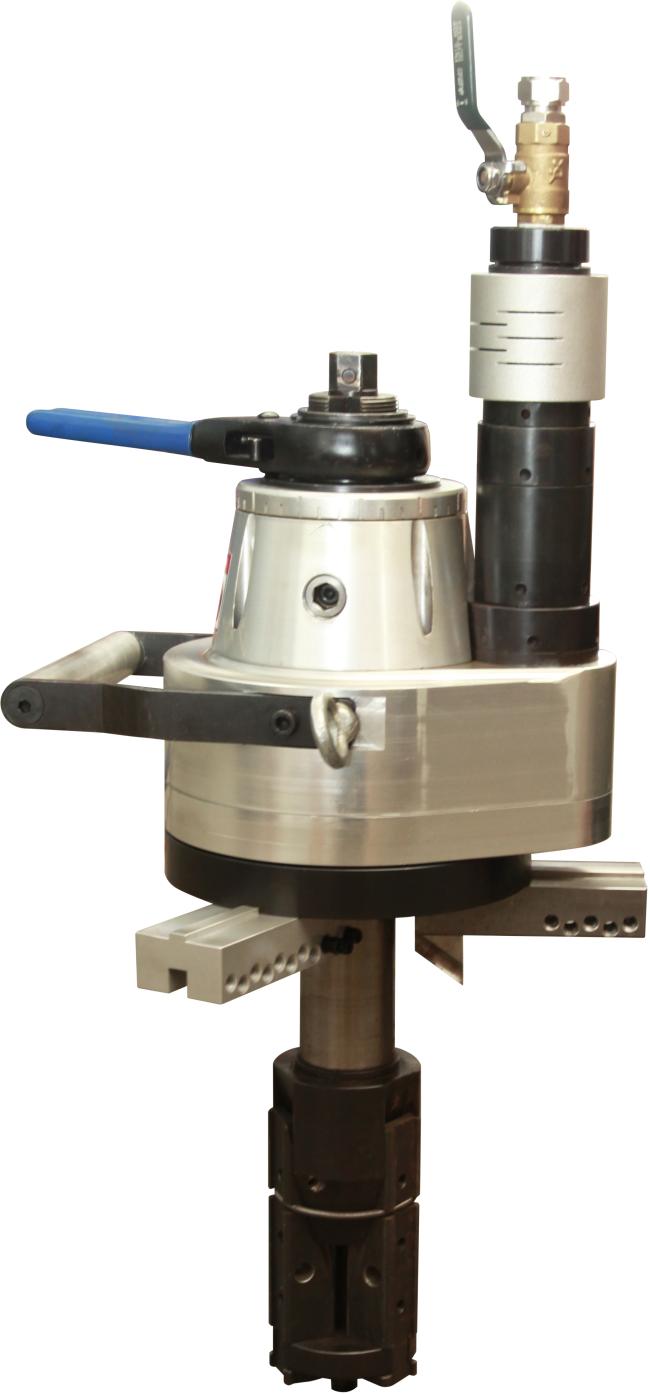

ID mounted Pipe beveling chamfering machine wellnit

This series machine adopts air motor,main applied at the site of explosive and fireproof,power supply required:0.6-0.8MPa compressed air. With the advantage of:Fast Installation,self centered and working safely.

This machine have three types operation types:

Technical Parameters:

Note:Non-Standard machine are available according to customer’s requirement.

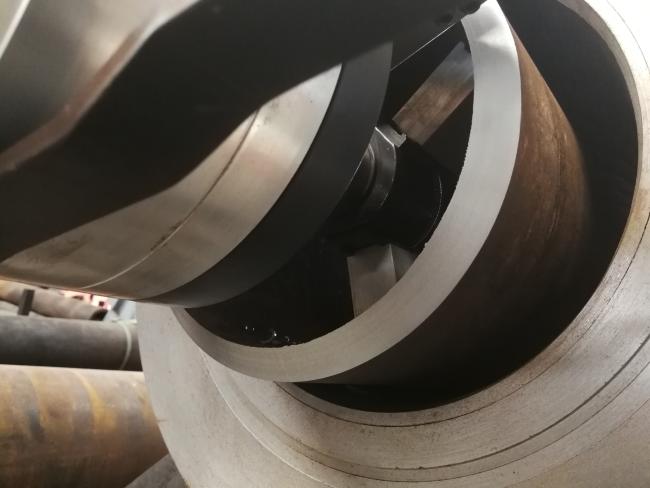

 Process surpface Show:

Machine Features:

• Compact structure ,Light weight ,easy to carry out.
• Have scale of feed handwheel ,improve feed accuracy
• Automatic feeding in the axial direction and the radial direction,high efficiency
• Horizontal, vertical, inverted, tilt etc,any direction both can processed.
• Can process flat face, water line, Continuous groove,RTJ groove etc
• Driven: Pneumatic,Hydraulic,Electric

Typical applications:

Flange facing machine application for Oil, Gas and Chemical ,Power Generation ,Heavy Equipment ,Ship building & repair

• Piping system

• Heat exchanger

• Vessel

• Flange faces on piping systems

• Pump housing

• Weld preps

• Tube sheet

• Bearing mounting bases

• Final drive hubs

• Bull gear faces

• Manufacturing of mining equipment

• Slew rings

• Bearing mounting bases

• Crane pedestal

Flange facing machine parameter:

Main advantages:

• Exceedingly versatile

• Highly portable

• Latest linear technology

• High efficiency

• Low noise level 2.0hp drive

• Storage/shipping box

• CE certificate

Pipe beveling machine

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe.

A draw nut is tightened,

which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,

self centered and squared to the bore. As the tool bit is fed into the material from the end,

a bevel is produced which conforms to the angle predetermined by the angle ground into the bit.

Bits are available for practically any material or beveling angle required,

and bits can be custom made for any form tooling operation.

 Features:

• On-site cold Beveling improves safety
• Easy set-up & Operation
• Self-Centering
• Can be positioned in any direction
• Feed ratchet spanner makes tool feed / back easily
• Light weight and compact design

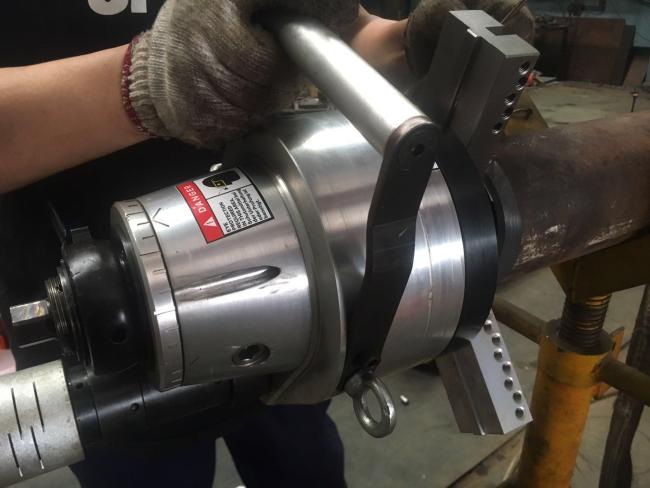

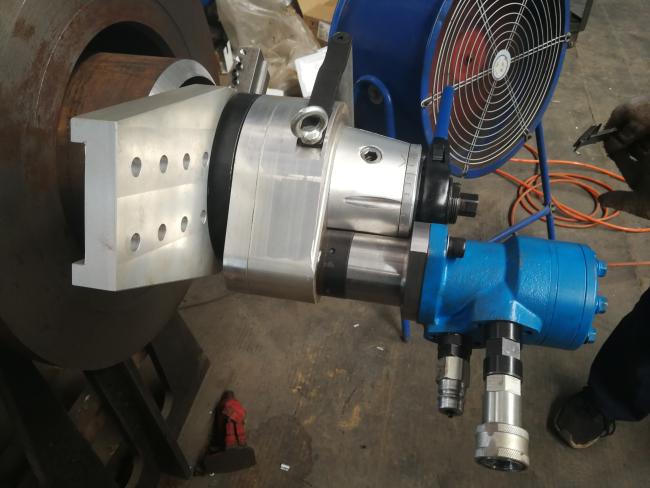

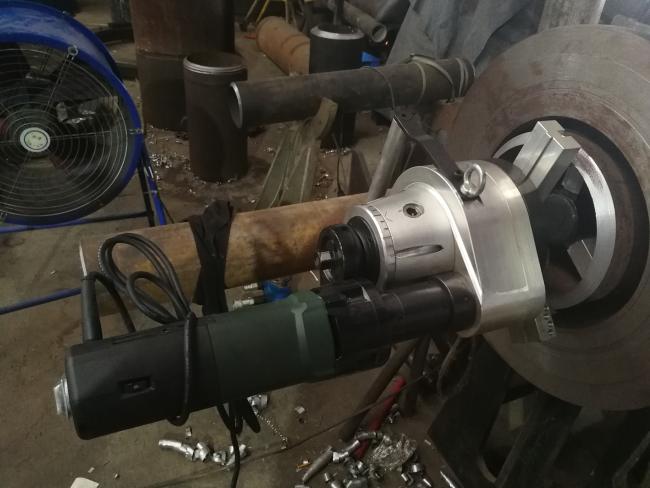

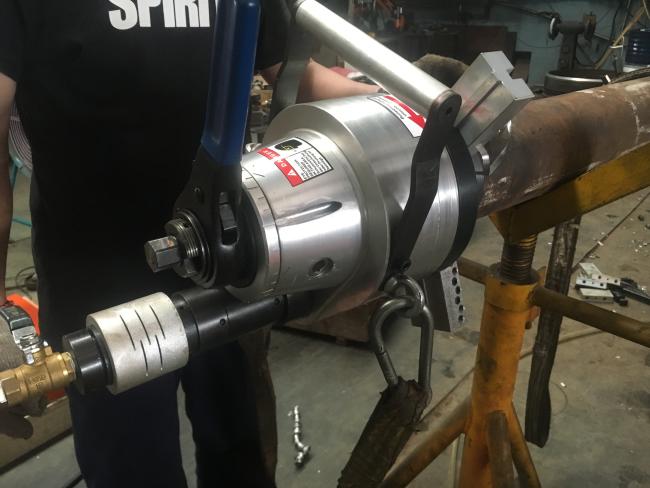

Machine on site:

Machine advantages:

• Quick and Easy Setup & Removal
• Lightweight
• Safe and Quiet Operation
• Simplified Operation
• Cuts Chamfers and Grooves

NISP-252-1 Machine can be used in horizontally,verically or overhead planes.

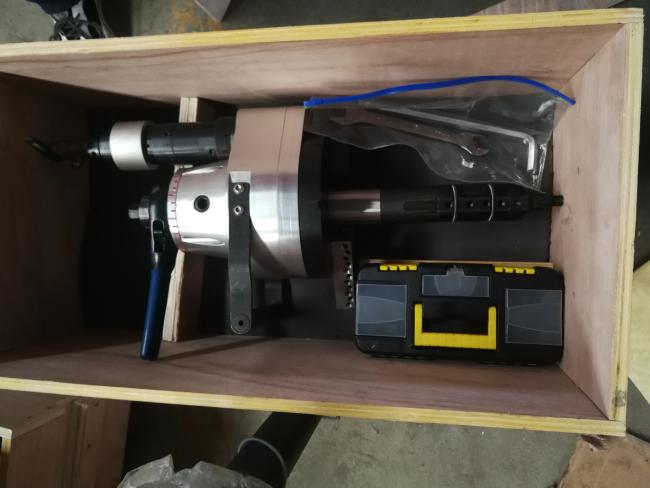

Packing pictures:

package :

size :

79x 38 x 35cm -

Weight:

45kgs wooden box in total (wooden box)

Easy to carry and reliable quality on site shipping.

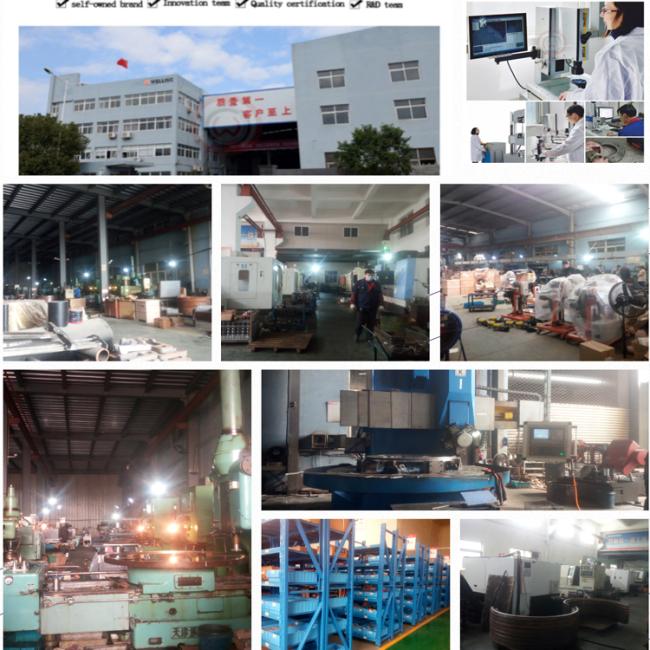

Company information:
