Multifunction Handheld Chamfering Machine Electric Stainless Steel Beveling

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: within 7 days after received 100% payment

Brand: wellnit

Product Description

Features

1. The machine is compact in structure, light in weight and easy to carry.

2. Small working radius, suitable for narrow working space.

3. Completely cold processed, no sparks, and will not affect the material.

4. Automatically locate the center of the pipe with high accuracy.

5. Manual feed, simple operation and high efficiency.

6. Groove form: V-shaped, U-shaped, J-shaped, internal bevel, etc.

7. The speed of the motor can be adjusted according to different materials of the pipe.

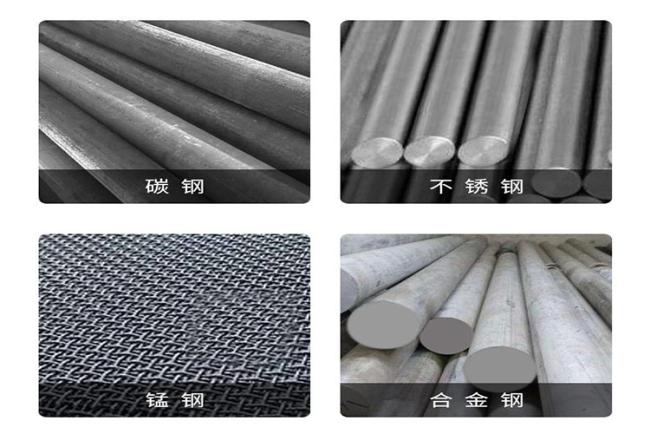

8. It can process pipes made of carbon steel, stainless steel, alloy steel and other metal materials.

Technical Parameters

specification	ISE-30	ISE-80	ISE-120	ISE-159	ISE-252T	ISE-252-1	ISH-325	ISE-352-1	ISE-426-1	ISE-630-1	ISE-850-1
Processing tube inner diameter	18-28mm	28-76mm	40-120mm	65-159mm	65-245mm	80-240mm	80-305mm	150-330mm	250-426mm	300-600mm	600-820mm
Cutting bevel wall thickness	≤15	≤15	≤15	≤20	≤20	≤20	≤20	≤20	≤20	≤20	≤20
Cutter speed	50r/min	55r/min	30r/min	35r/min	16r/min	16r/min	16r/min	14r/min	12r/min	10r/min	9r/min

specification	ISE-252-2	ISE-352-2	ISE-426-2	ISE-630-2	ISE-850-2
Processing tube inner diameter	80-240mm	150-330mm	250-426mm	300-600mm	600-820mm
Cutting bevel wall thickness	≤75	≤75	≤75	≤75	≤75
Cutter speed	16r/min	14r/min	12r/min	10r/min	9r/min
