COBLATION Disposable Electrodes for Shoulder,Hip and Knee Reconstruction
COBLATION Disposable Electrodes for Shoulder,Hip and Knee Reconstruction
01 Brief overview
Standard triple-wire active electrode configuration
- Efficient tissue ablation during shoulder,knee hip reconstruction surgical procedures
- Bipolar coagulation for achieving efficient hemostasis
Malleable Wand shaft
- Bendable to accommodate variable patient anatomy
Integrated saline irrigation and suction capabilities
- Easy device setup and operation
- Eliminates need for separate operative suction
02Technical Parameters
| Model No. | PLA306 |
| Probe Shape Angle | Probe angle 45° |
| Qty. of pins | 12 pins |
| Working length | 135mm |
| Outer diameter | 3.6mm |
| Usage |
Elbow/ankle joint |
03 Applications
Widely used for knee, shoulder, hip, wrist, ankle and elbow joints. Resection, lysis, plasty, debridement and ablation can be applied on meniscus, soft tissue, ligament, synovial membrane, tendon glenoid labrum, etc. For example, complete or partial resection of meniscus, meniscus finishing and repairing, ligament release or tightening, pathological synovial removal, intra-articular residue clearance, agedness osteoarthritis treatment, wound restoring, bone infection treatment, etc.

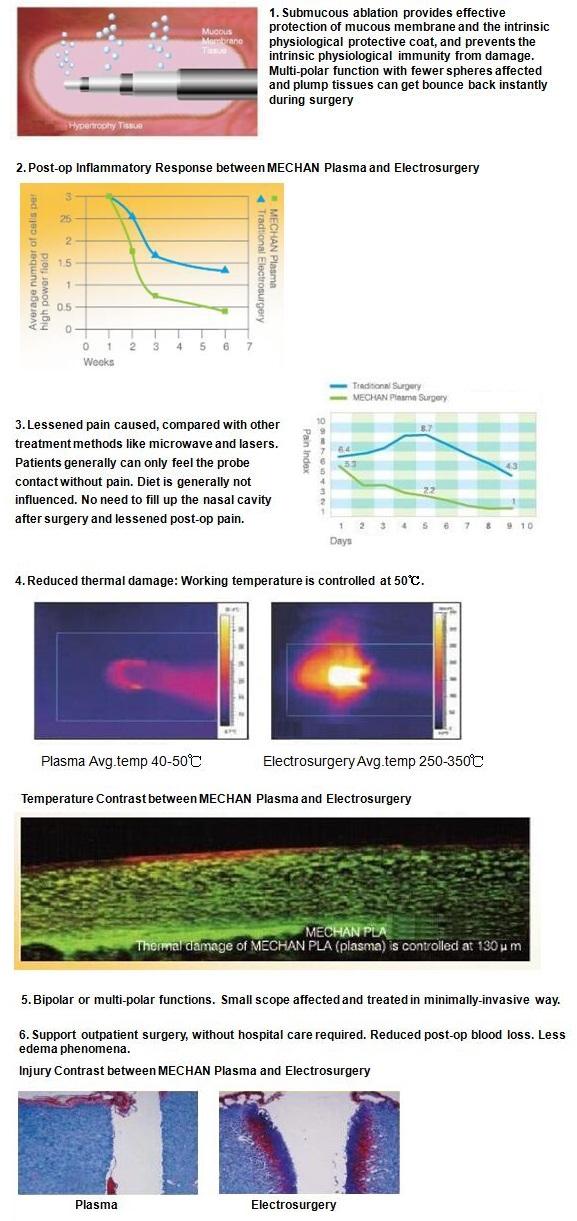

04 Features
- Low-temperature resection: less than 70°c
- Fibrinogen aggregation hemostasis (clear surgical field and almost no bleeding)
- For larger blood vessel: with specialized hemostasis function
- Variable-angle joint probe, capable of resection and hemostasis within small articular cavity
- Reduce hydrops within articular cavity, almost no soild particles residue
- Better and faster recovery of joint function
- Low-temperature ablation: less than 50°c
- For minimal blood vessel: simultaneously resection and hemostasis
- Joint probe with suction tube is capable of suction while resection
- Minimize surgery time
- Little damage to neighboring tissue, blood vessels and nerves , light pain after surgery
- Undertake functions of the power system to a larger extent

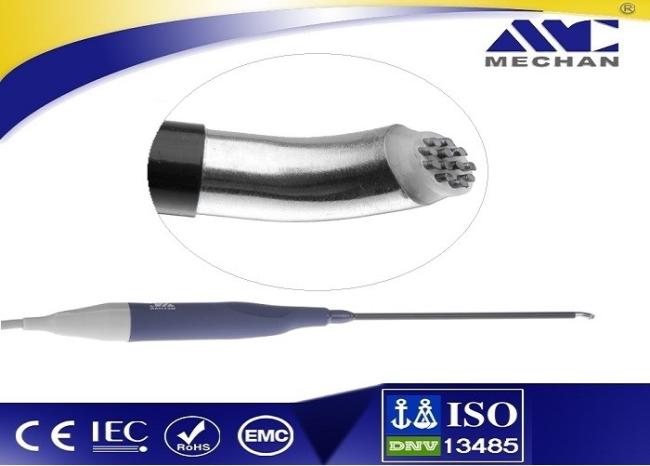

05 Product Detail Picture
06 Packaging & Delivery
Selling Units: Single item
Single package size: 44X17X2 cm
Single gross weight: 0.200 kg
Package Type: by carton
07 Certifications
We have almost all the necessary certifications to help our distributor to sell Mechan products.
08 Company profile
Chengdu Mechan Electronic Technology Co., Ltd was established in 2002, the leader in Chinese Plasma Surgery System Industry. It is a high-tech enterprise combined production with sales, also a pioneer in the production of plasma medical products, including low temperature urology plasma surgery system, low temperature ENT plasma surgery system, low temperature orthopedics plasma surgery system, etc.
Surgeons feel very comfortable to operate the surgery due to barely bleeding and real time hemostasis. Patients feel light pain after the operation, and recovery time is much less compared with traditional treatment methods like electrosurgery.
Our vision is to become a professional company taking low temperature plasma technology as core to produce minimally invasive products for whole departments, and make the low-temperature plasma.
