24 Port FTTH Fiber Optic Terminal Box With PLC Splitter For Outdoor Pole Mounted
24 port FTTH box with PLC splitter for outdoor pole mounted application
Description:
OTB-P023-A FTTH box has 24pcs drop cable ports, good for cable management in FTTx application.
It is ABS plastic material and for outdoor wall mounted and pole mounted using. The 24pcs SC simplex adapter can be loaded inside for fiber distribution.
Features:
Material: ABS plastic
4pcs fiber optic splice trays, each 12 fibers; max. 48 fibers
Can load 24pcs SC simplex adapter
Can load 1pc PLC 1:16 steel tube type splitter or 2pcs PLC 1:8 steel tube type splitters
2pcs Φ15mm entry cable ports (8 port Φ6.5 rubber gasket optional) & 24pcs 2*3mm drop cable ports
Wall mounting and pole mounting application
Waterproof, outdoor using, IP65
Specification:
| Model | Capacity | Dimension | Adapter port |
| OTB-P023-A |
Max. 48 fibers |
232x359x130.5mm |
Max. 24pcs SC simplex adapters |
Application:
FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks

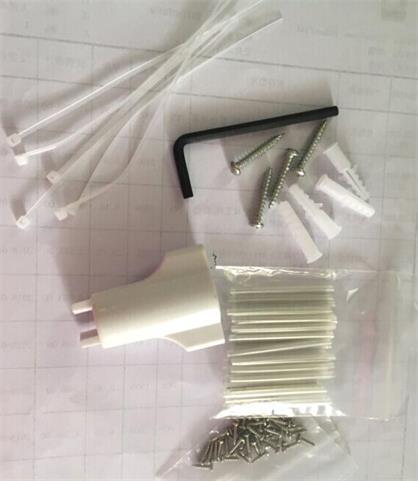

Accessory:
