Waterproof FTTH Fiber Optic Terminal Box Support Cable Entry Without Cutting
Plastic 96 fiber FTTH box for outdoor wall mounted or pole mounted application
Description:
OTB-S96 is outdoor plastic fiber optic termination box. It can outdoor wall mounted or pole mounted using.
YHT produce 2 similar modes:
OTB-S96 can load 96pcs SC simplex adapters, max. 8pcs splice trays for 192 fiber splicing.
OTB-S96A can load 72pcs SC simplex adapter, max. 4pcs splice trays for 96 fiber splicing, also can load max. 8pcs PLC splitter 1:8 or 1pc PLC 1:64.
Features:
Model: OTB-S96
Different adapter panel, SC, LC, ST, FC ...
96 adapter port
Max. 8pcs splice tray for 192 fiber splicing (splice tray in both side, each side 4pcs)
Max. 8pcs PG21 cable port
Waterproof IP65
Wall mounted or pole mounted application
Model: OTB-S96A
Different adapter panel, SC, LC, ST, FC ...
Support cable entry without cutting
Max. can load 8pcs 1:8 or 1pc 1:64 box type splitter
72 adapter port
Max.4pcs splice tray for 96 fiber splicing (splice tray in one side)
Max. 6pcs PG21 cable port + 2 rubber cable port
Waterproof IP65
Wall mounted or pole mounted application
Specification:
| Model | Adapter port | Dimension | Splitter Space |
| OTB-S96 | 96 SC simplex | 397x467x125mm | No |
| OTB-S96-A | 72 SC simplex | 397x467x125mm | Max. 8pcs 8 way or 1pc 64 way splitter |
Pictures:

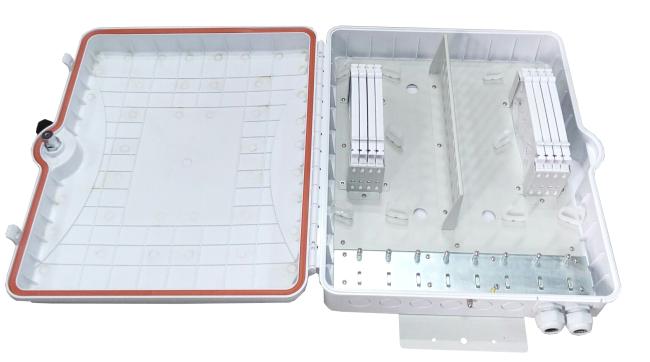

Model: OTB-S96

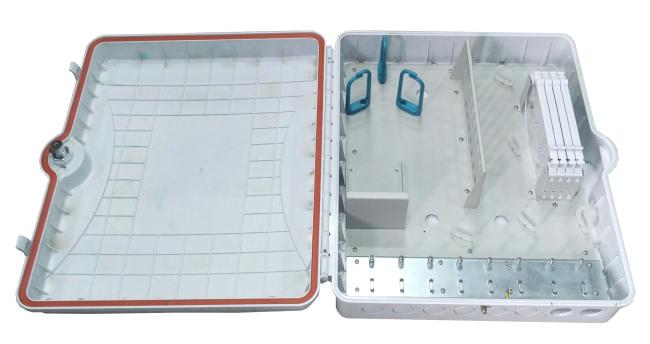

Model: OTB-S96-A
