Outdoor FTTH Fiber Optic Terminal Box , Fiber Optic Wall Mount Enclosures With 10 Cable Port
Outdoor wall mounted plastic FTTH box with 10 cable port for loading 12pcs SC adapters
Description:
Fiber optic terminal box OTB-P021-A is suitable for optical fiber splicing, distribution and protection. It is reasonable design for fiber arrangement, and its bend radius is more than 30mm.
It has 8pcs cable ports, nice design.
Features:
Material: ABS plastic
2 splice module, each 6 slots, max. 12 fibers
Max. 12pcs SC simplex adapter ports
Support cable entry without cutting
2pcs port for max. 12mm cable + 8pcs port for max. 8mm cable entry
Wall mounting and pole mounting application
Waterproof, outdoor using, IP65
Application:
FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Specification:
| Model | Dimension | Material | Adapter port | Capacity | Cable port | Application |
| OTB-P021-A | 239x211x80mm | ABS plastic | 12 SC simplex | 12 fibers | 10pcs |
Outdoor wall mounted Cable entry without cutting |

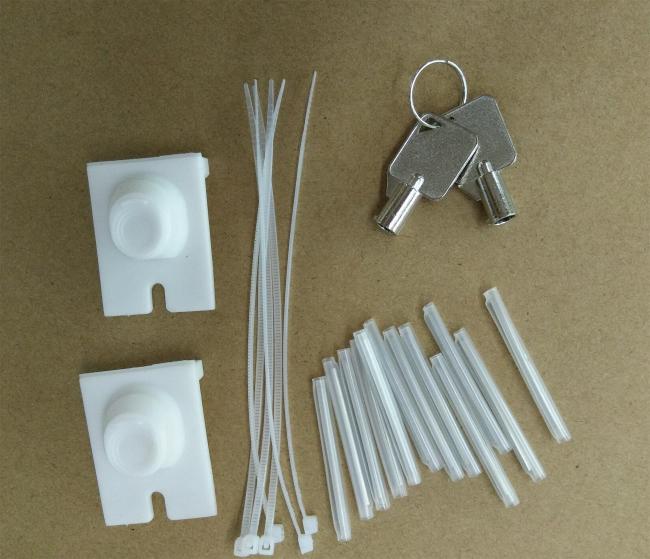

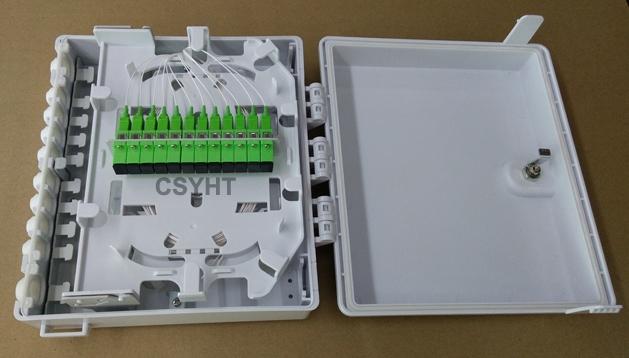

Pictures:
