Wall Mounted FTTH Distribution Box 2 Port Loaded 1 SC Duplex Adapter ABS Plastic
Indoor wall mounted FTTH box 2 port loaded 1 SC duplex adapter
Description:
OTB-C02 is an indoor wall mounted box that load 1pc SC duplex adapter & 2 splice modules for fiber splicing and distribution.
Features:
1. Made of ABS plastic, the cover is inserted into base.
2. Reasonable design, suitable for 1pc SC duplex adapter
3. 4pcs cable entry ports, max cable dimension 8mm, cable can be entry without cutting.
4. It can be installed on the wall and table.
5. Used in the end termination of residential building and villas, to fix and splice with pigtails.
Specification:
| Model |
Dimensiion W*H*D (mm) |
Material | Adapter port | Splicing capacity | Cable port | Remark |
| OTB-C02 | 102.8x164x20 | ABS plastic | 1 SC duplex | 12 fibers | 4 ports φ8mm | cable entry without cutting |
Pictures:

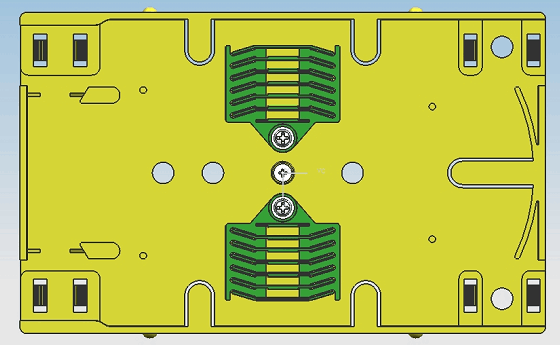

When load 2pcs splice modules, it can be 12 fiber splicing.
