19 Inch FTTH Fiber Optic Terminal Box , 144FO Fiber Optic Connection Box Load 12pcs MPO Cassette
144FO 19inch fiber optic distribution box load 12pcs MPO cassette
Description:
CH-3U-12P-A is MPO Subrack design to accommodate MPO terminals.Suitable for different kinds of equipment which is designed according to 19’’ cabinet.3U Subrack Can loaded with Max.12pcs MPO cassettes.Comply to ETSI standard.
Specification:
| Model | Dimension | Material | MPO box | Max. capacity | Application |
| CH-3U-12P-A | 482.6x225x133.5mm | Cold roll steel | 12pcs | 288 fibers |
Fixed rack mounted type 144 fiber if load 12pcs BCSCS12CA 288 fibers if load 12pcs BCLCD24CA |
MPO cassette:
| Model | Dimension | Material | Adapter port | Capacity | Application |
|
BCSCS12CA |
130x225.5x35mm | Aluminum | 12 SC simplex and 2 MPO | 12 fibers | Used in CH-3U-12P-A |
| BCLCD24CA | 130x225.5x35mm | Aluminum | 12 LC duplex and 2MPO | 24 fibers | Used in CH-3U-12P-A |
Features:
Compact design for space saving
Manual Screws fixation,Easy for management and operation.
Slide rail on 3U subrack for fixing the MPO cassettes and easy sliding out.
MPO cassettes:12cores for SC simplex adapters.24cores for LC duplex adapters.back side have 1pcs 24cores splice tray
Painting:
Electrostatic Powder anti-rust spraying,Black or grey color optional.

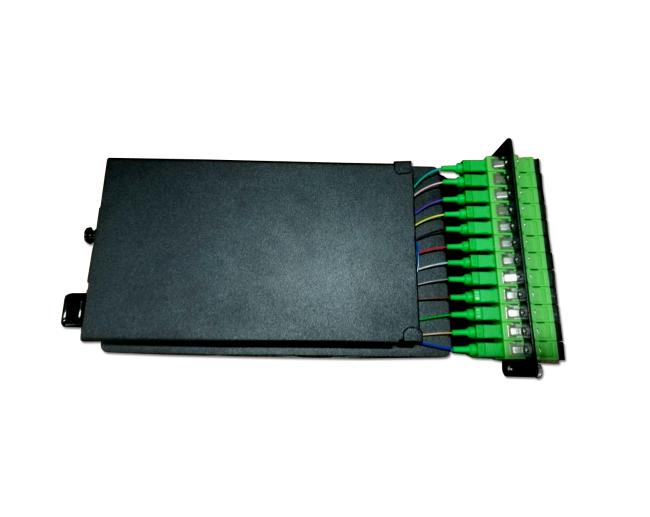

MPO cassette:
(BCSCS12CA)
