Indoor wall mounted fiber optic distribution box 96FO made by cold roll steel
Indoor wall mounted fiber optic distribution box 96FO made by cold roll steel
Description:
Fiber optic distribution box ODF-IG96 is designed for indoor wall-mounted using, cold-roll steel material, no adapter plate, only splice trays for fiber splicing and management.
Features:
Cold-roll steel, electrostatic painting
ABS plastic tray inside, 12cores per tray
Only for cable splicing, no plate for adapter installation
Cable entry ports suitable for single fiber, bundle & ribbon fiber cables
Reasonable design ensures the cables are in good order
Wall mouted type, indoor using; pole mounted available
With lock on front door
12, 24, 48, 96 cores optional
Application:
Mainly used for cable inlet and fixing; fiber splicing and protecting; connection and use management between wiring closets and equipments.
Applicable to Telecommunications, Fiber to the home (FTTH), LAN / WAN, CATV ect. System projects.
Parameters:
Operating temperature: -5～+40℃
Relative humidity: ≤85%(+30℃)
Atmospheric pressure:70～-106Kpa
Standard working wavelength: 850nm, 1310nm, 1550nm
Specification:
| Model | Dimension | Material | Adapter port | Splicing capacity | Application |
| ODF-IG96 | 380x450x129mm | cold roll steel | / | 96 fibers | Indoor wall mounted |

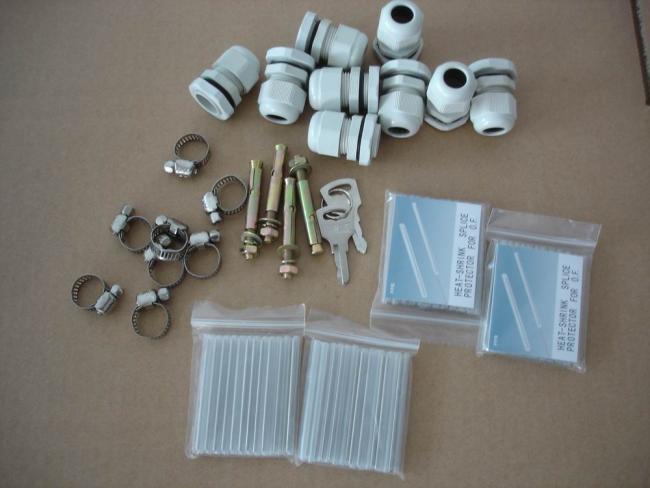

Accessory:
