Cold Roll Steel FTTH Fiber Optic Terminal Box 12 Port Two Door With Lock
12 port metal fiber optic distribution box for indoor wall mounted application
Description:
ODF-IW12B is an indoor Wall-mount Fiber Optic Distribution Frame with two doors. There are FC, LC, SC, ST output interfaces optional, and large working space to integrate the pigtails, cables and adapters.
It can manage different kind of fiber optic cables.
Features:
With cold-roll steel box, splicing unit, distribution unit and panel
Various panel plate to fit different adapter interface
Adapters can be installed: FC, SC, ST, LC
Suitable for single fiber and ribbon & bundle fiber cables
Special design ensures the excess fiber cords and pigtails in good order
No interval and easy for management and operation
Specification:
| Model | Fiber Quantity | Dimension(cm) | Weight(Kg) |
| ODF-IW12B | 12 | 30x30x8.5 | 3 |
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/ WAN
CATV

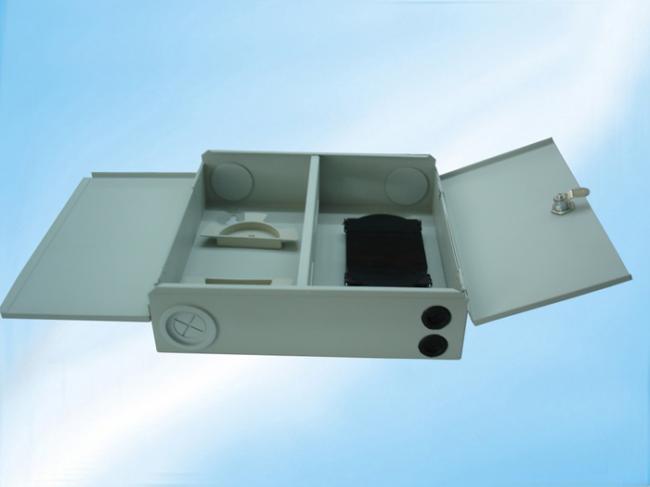

Picture:
