Indoor wall mounted fiber optic distribution box for 36 fiber using
Indoor wall mounted fiber optic distribution box for 36 fiber using
Description:
Indoor Wall-mount Fiber Optic Distribution Box ODF-IW36-D is with 2 doors. Each door with lock. One door for fiber splicing management, the other door for cable distribution managerment. It can manage both single fiber and ribbon & bundle fiber cables for indoor using. There are FC, LC, SC, ST output interfaces optional.
ODF-IW36-D has a big advantage.The upper and lower cable holes are same design, then several boxes can be stacked to use.
Features:
Cold rolled steel material.
Various panel plate to fit different adapter interface
Adapters can be installed: FC, SC, ST, LC
Suitable for single fiber and ribbon & bundle fiber cables
Special design ensures the excess fiber cords and pigtails in good order
Double door, easy to management.
Specification:
| Model | Capacity | Dimension(cm) | Adapter |
| ODF-IW36-D | 36 | 36.2*15.2*11.2 | 36pcs SC, FC, LC, ST adapter |
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/ WAN
CATV

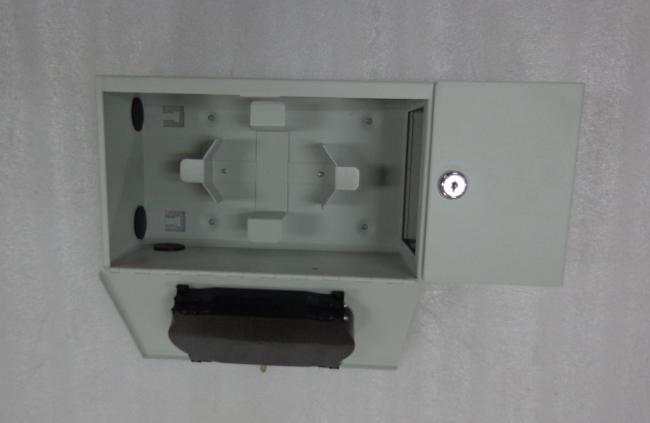

Picture:
