96 Fibers Outside Fiber Optic Wall Box FC LC SC ST Output Interfaces Optional
96 fibers outdoor wall mounted fiber optic distribution box
Description:
ODF-OW96 is outdoor metal 96FO fiber otic distribution box that mainly used for connecting the outdoor optical cables, optical patch cords and optical pigtails. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines.
Features:
With steel plates can manage both single fiber and ribbon & bundle fiber cables
FC, LC, SC, ST output interfaces optional
Large working space to integrate the pigtail, cables and adapters
Made of cold-rolling steel, electrostatic spraying
Special design ensures the excess fiber cords and pigtails in good order
Inner components as follows:
Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers
Fixing Device: used for fixing the fiber protective tubes, the fiber reinforced cores and the distribution pigtails
The brim of the box is sealed
Specification:
| Model | Capacity | Dimension(mm) | Remark |
| ODF-OW96 | 96 | 550x 480x 267 | 8pcs splice tray OST-005B |
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/ WAN
CATV

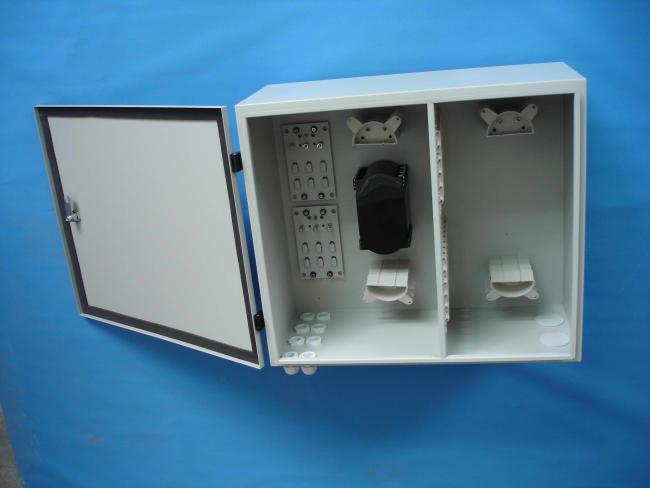

Picture:
