Dome Type 144FO Fiber Optic Closure Light Weight With 6pcs 24FO Splice Tray
Dome type 144FO fiber optic closure with 6pcs 24FO splice tray
Description:
CV007 fiber optical splice closure has 6pcs or 5pcs cable port for cable entry. It is made of high quality ABS. The closure and the foundation plate are sealed with Silicon Gum Material which fixes tightly by hoop. And the sealing of cables use Shrinkable tube. The closure can be opened and used again, no need to change the sealing material after sealed.
Specification:
| Dimension | Φ189 x 501.5 mm |
| Weight | 3.8 kg |
| Max. Cable diameter | Φ23 mm |
| Cable Entry & Exit | 6 round port or 1 oval + 4 round port |
| Max. capacity of splice tray | 24 fibers |
| Max. qty of splice tray | 6pcs |
| Max. capacity of cores | 144 fibers |
| Sealing structure |
Heat shrinkable sealing |
Application: Aerial-hanged, pole-mounting, wall mounted
Accessories:
1. Transparent Bare fiber protect tube
2. Cable tie
3. Sealing Heat shrinkable tube
4. Heat shrinkable protection sleeve
5. Mounting hoop
6. Insulating tape
Pictures:

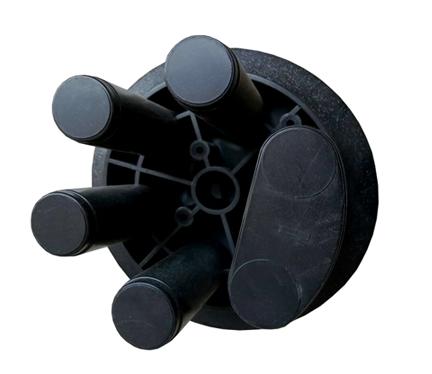

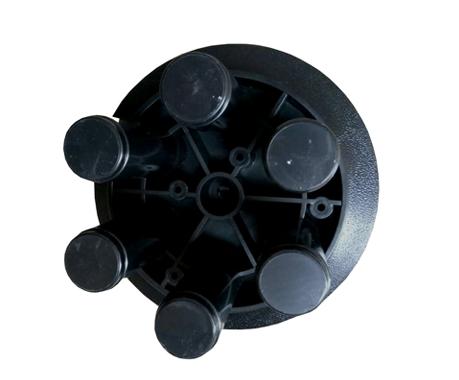

Two type cable port:
