Vertical Type Fiber Optic Cable Junction Box Load PLC Splitter For Fiber Distribution
Vertical type fiber optic splice closure load PLC splitter for fiber distribution
Description:
CV014 is a fiber optic splice closure that used for optical fiber cable splicing, joint and protection. It can load fiber optic adapter plate and has space for loading PLC splitter. So it can used for fiber spliting and distribution.
It is water proof and dust proof and suitable for outdoor aerial hanged, pole mounted, duct, buried application.
Feature:
1. Adapter: can be loaded with 36pcs SC simple adapters or 36pcs LC duplex(SC shape) adapters
2. Splitter: can loaded 1 cassette PLC splitter 1*8,1*16 or1*32 splitter
3. Splice tray: 3PCS, each 24cores
4. Cable port: 5cable ports, 4pcs(φ18mm),1pcs (φ42mm,cable no cutting).
5. All cable port is mechanical sealing with different size rubber gasket for simplex, FTTH drop cable entry/exit
6. Waterproof: IP68
7. Wall-mounting, aerial hanger and pole-mount kit optional
8. Material: high impact resistance PP materials with UV
Specification:
| Model | Splice tray | Fiber core | Dimension(mm) | Weight(Kg) |
| CV014 | 3trays,each 24core | 72C | φ182.5 ×height 521.1 | 4kg |

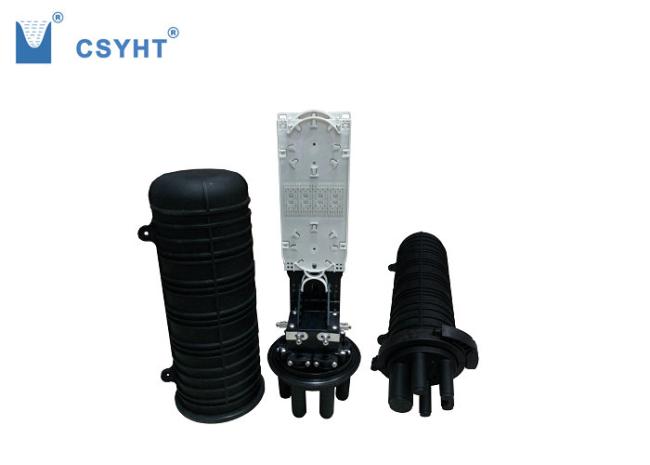

Picture:
