144FO fiber optic splice closure with 1 oval and 4 round cable port
144FO fiber optic splice closure with 1 oval and 4 round cable port
Description:
CV015 is dome type fiber optic splice closure that with 1 oval port and 4 round port for cable entry and exist. CV015 is widely applied to the splicing, distributing variable optical cables. It is water proof and dust proof for outdoor aerial hanged, pole mounted, duct, buried application.
It is made of PP plastic, max. with 6pcs splice trays, max. 144 fiber capacity.
Feature:
1. Splice tray: Max. 6pcs, each 24cores
2. Cable port: 4pcs round port φ20mm, 1pc ellipse port for supporting cable entry without cutting.
3. All cable ports are heat shrink sealing.
4. Waterproof: IP68
5. Wall-mounting, aerial hanger and pole holding
6. Material: high impact resistance PP materials with UV
Specification:
| Model | Max. capacity | Dimension | Material | Splice tray |
| CV015 | 144 fibers | φ182.5 x 509.1 mm | PP | 6pcs, 24 fibers |

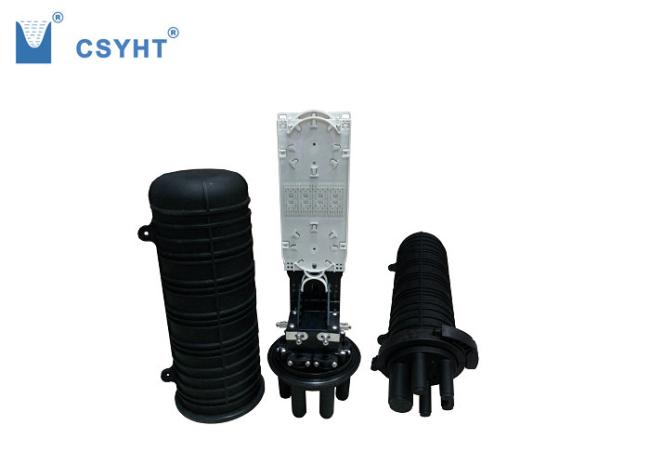

Picture:
