Horizontal Type Fiber Optic Closure Outdoor Aerial Hanged For 12 - 144 Fiber Splicing
4 in 4 out horizontal type fiber optic closure for 12 , 24 , 48 , 96 , 144 fiber splicing
Description:
CH009 has 8 fiber cable in-out round ports for the diameter Ф8-Ф16mm cable entry. It is widely applied to the splicing and distributing variable optical cables. It is made of high-quality ABS and with the mechanical seal structure filled with the seal material. The external component and fastening piece are all made of the high-quality steel. It can be opened after sealing and can be reused without changing sealing material, with silicone rubber insulation tape.
Application: Wall mounted, Aerial hanged
Specification:
| Dimension (mm) | 466.5x179.5x120.6 |
| Weight (Kg) | About 2.8 |
| Cable diameter(mm) | Ф8-Ф16 |
| Cable entry ports | 4 in 4 out |
| Max. Capacity of fiber splice tray |
6pcs (each tray 12slots, each slot for 2 fibers; 24fibers) |
| Max. Capacity | 144fibers |
| Sealing structure | Silicon gum material or sticky cincture |

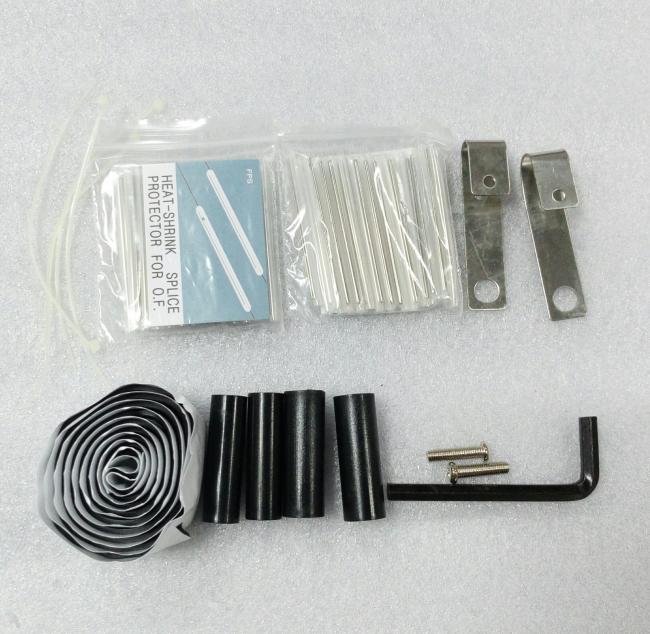

Accessories:
Splice protector sleeve
Silicon gum material
Sticky cincture
Cable ties
Sealing washer
Allen wrench
Insulated rubber belt
