Horizontal Type 12 Fiber Optic Closure For Outdoor Aerial Hanged / Wall Mounted
Horizontal type 12 fiber optic closure for outdoor aerial hanged and wall mounted using
Description:
CH025 is a Mini. fiber optic splice closure that with 1 splice module inside. It can meet 12 fo fiber cable splicing and connection. There is silicone sealing gasket between the cover and bottom.
It is used for outdoor aerial hang application.
Features:
Small size, reasonable design for cable protection
Material: PP plastic for base and cover; ABS plastic for inside parts; Silicone for sealing gasket.
4 cable ports (2 in 2 out) for max. 12mm diameter optical cable entry & exist
Inside 6 fiber slot for max. 12 fibers splicing.
With fixing cable strengthen core parts
Dust-proof and waterproof, IP65.
Dimension:
| Model | Capacity | Dimension | Material | Splice tray qty | Cable port | Application |
| CH025 | Max. 12 fibers | 300x102.7x42mm | PP plastic | 1 module |
1 in 1 out 2 cable port |
Outdoor aerial hanged, wall mounted |

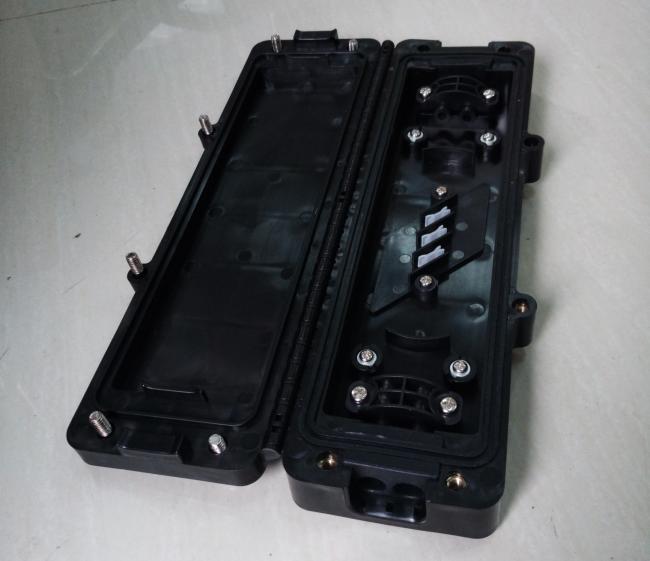

Picture:
