24 Core Fiber Optic Closure 2 In 2 Out With 1pc Splice Tray 245x150x30.1mm
24 core fiber optic splice closure 2 in 2 out with 1pc splice tray
Description:
CH022 is a small inline type fiber optic splice closure for fiber splicing and protection. It is made of high-quality PP material. There is silicone sealing gasket between the cover and bottom.
Fiber optic splice closure is an equipment that used for optical fiber cable splicing, joint and protection. It is water proof and dust proof and suitable for outdoor aerial hanged, pole mounted, duct, buried application.
Features:
Small size, reasonable design for cable protection
PP plastic material, white and black color available
With metal plate on screw hole for strengthening box durability
4 cable port (2 in 2 out) for max.Φ15mm cable entry/exist
1 splice tray, 12 fiber slot for max. 24 fibers splicing
Dust-proof and waterproof, IP65
Aerial hang application
Specification:
| Model | Dimension | Material | Splice tray | Max. capacity | Cable port | Application |
| CH022 | 245x150x30.1mm | ABS | 1 tray | 24 fibers | 4 ports | Outdoor aerial hanged, wall mounted |

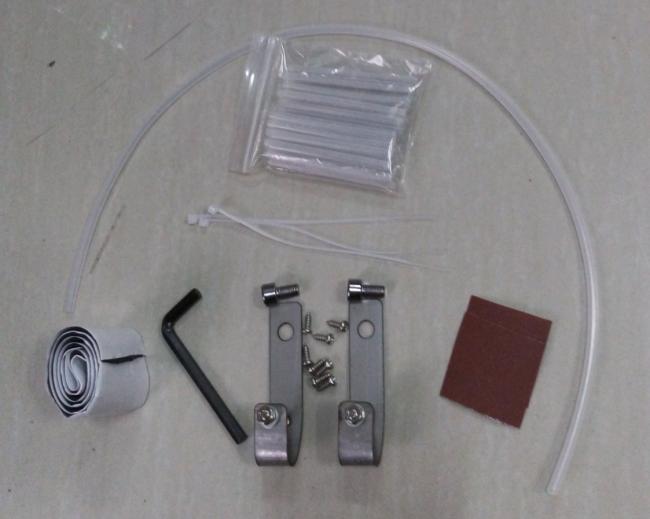

Pictures:
