Mini Size Fiber Optic Joint Enclosure 12 Fibers 1 In 1 Out For Cable Protection
Mini.size fiber optic closure 12 fibers 1 in 1 out made by ABS plastic
Description:
CH021 is a mini. size inline type fiber optic splice closure. It is 1 in 1 out, with 6 sleeve holders for max. 12 fiber splicing and connection. Fiber optic splice closure is an equipment that used for optical fiber cable splicing, joint and protection.It is made of high-quality ABS material. There is silicone sealing gasket between the cover and bottom.
Application:
Outdoor aerial hanged, wall mounted
Features:
1. Small size, reasonable design for cable protection
2. ABS plastic material, white and black color available
3. 2 cable port (1 in 1 out) diameter 8.0mm
4. Inside 6 fiber slot for max. 12 fibers splicing.
5. With fixing cable strengthen core parts
6. Wall mounted, aerial hang application
7. Dust-proof and waterproof, IP65.
Spcification:
| Model | Dimension | Splice tray | Material | Capacity | Cable port | Application |
| CH021 | 190x90.1x21.5mm | 1 module 6-12 fibers | ABS | 12 fibers | 2 ports | Outdoor aerial hanged, wall mounted |

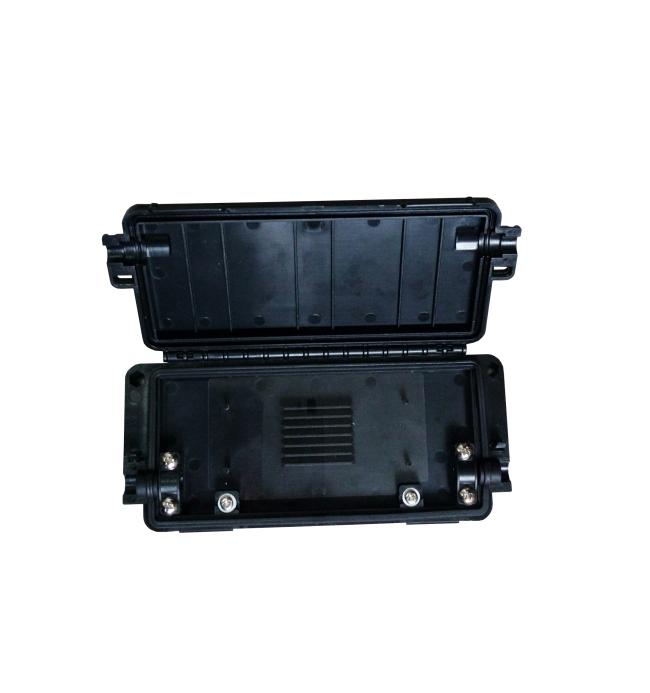

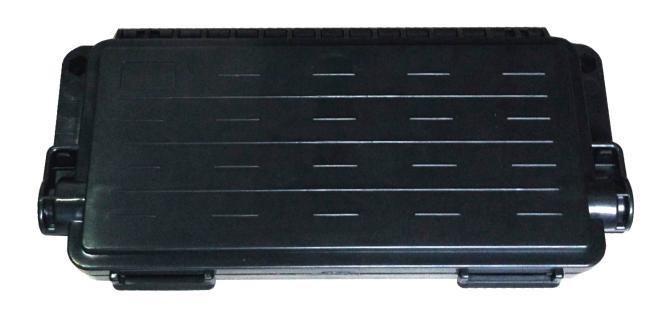

Pictures:
