Low Loss FTTH Fiber Optic Terminal Box , Cold Roll Steel Fiber Access Terminal Box
Outdoor wall mounted fiber optic splitter FTTH box 24FO made by cold roll steel
Description:

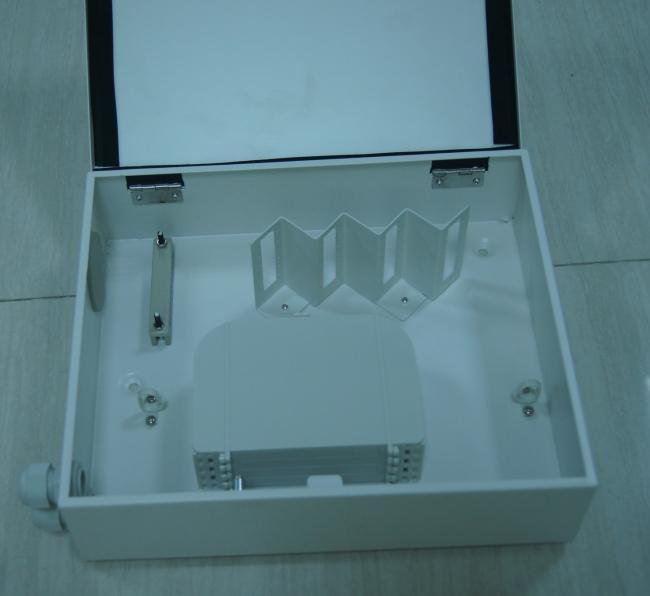

OTB-SP16 is outdoor wall mounted fiber optic splitter box that made of cold roll steel, 16 ports for loading SC, LC, FC, ST ... different adapters. It can load 1:16 PLC splitter for fiber split and splicing.
Fetures:
Static powder spraying,nice and compact appearance.
It can load splitter,max for 16way,if load with pigtail,can be 24fiber at most.
The adaper is for angel fixing,smooth swirl of pigtail,large radius of curvature,It could effectivly reduce the loss of fiber transmission.
SC,FC,ST and another adapter panel can be interchangable.
The splice tray can be cascade rotary type,it is convenient for increase,decrease,and operation
Parameter:
Operating temperature:-5℃+40℃ relative humidity:≤90%(+30℃)；
Atmospheric pressure:70Kpa-106Kpa Storage temperature:-40℃+70℃；
Photoelectric charactics:IL≤0.2dB;additional loss≤0.2B；
RL≥45dB; additional loss≤5dB；
Push-pulling endurance life >1000times；
The fiber cable conform to GB/T11819 and GB/T7424 standard;
The fiber connector comply with GB12507,and related to standard regulation
Components:
| NO. | Items | Specification | Unit | Qty | Note |
| 1 | Dimension(mm) | 305mm×254mm×80mm | set | 1 | |
| 2 | Adapter panel | SC,FC,ST | pcs | 1 | upon request |
| 3 | FTTH drop cable bracket | Maximum fixed 12pcs FTTH drop cable | pcs | 2 | |
| 4 | Optic cable fixed set | Support to fixed 2pcs Optic cable | set | 1 | |
| 5 | Splice tray | 12 cores | set | 2 | upon request |
| 6 | Adapter | SC,FC,ST and etc. | set | 24 | upon request |
| 7 | Fiber optic splitter | 1X8,1X16 | set | 1 | upon request |
| 8 | Accessories | Wall-mounted kit,tie and etc. | set | 1 |
