48 port 2U fiber optic patch panel RS48 rack mounted ODF used in 19inch cabinet
48 port 2U fiber optic patch panel RS48 rack mounted ODF used in 19inch cabinet
Description:
ODF-RS48 fiber optic patch panel is used for 48 fiber splicing, connection, distribution and protection. It is slidable type, 19inch rack mounted application. It is cold roll steel body and plastic splice tray inside. It often used in fiber optic centre.
Features:
Max. capacity 48 fibers; if load LC duplex, max. 96 fibers
4 fiber cable entry ports at rear side
White or black color
Standard size, light weight and reasonable structure
Slide out drawer for easy cable management
FC simplex, SC simplex, SC duplex, ST simplex, LC duplex ... adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ standard optic distribution cabinets
Application:
Fiber optic centre
Fiber to the home (FTTH)
LAN / WAN
CATV
Specification:
| Model | Capacity | Height | Dimension(mm) | Weight(Kg) |
| ODF-RS48 |
48FO If LC duplex, 96FO |
2U | 435x317.3x88 | 5 |

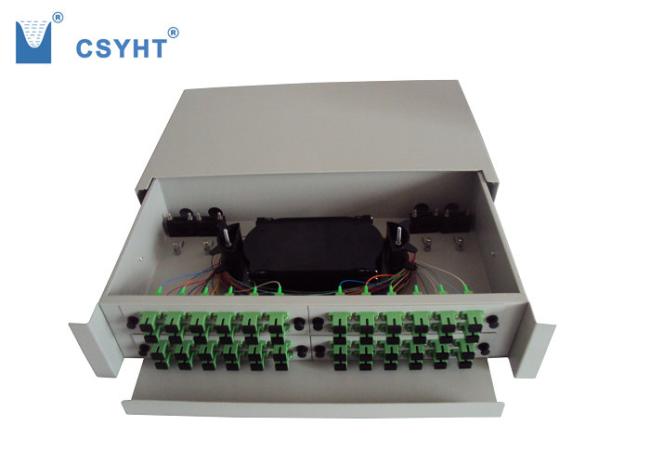

Pictures:
