96 Port Rack Mount Fiber Panel Slide Out Drawer For Easy Cable Management
96 port drawer fiber optic patch panel 19inch rack mounted with front cover
Description:
ODF-RS96A fiber optic distribution frame is with metal front cover. It is made of cold roll steel, with plastic splice tray inside. It is loaded in 19'' fiber optic cabinet.
It contains 8pcs fiber optic splice trays, max. 96 fibers splicing and distribution. Different adapter panel can be provided, such as FC, SC, LC, ST, MU ...
Features:
Standard size, light weight and reasonable structure
Slide out drawer for easy cable management
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
With metal front cover
8pcs splice trays (each 12fibers)
12pcs adapter plates (each 8pcs adapter ports)
Max. capacity 96 fibers
4 fiber cable entry ports at rear side
White or black color
Specification:
| Model | Fiber Quantity | Dimension(mm) | Net Weight(kg) |
| ODF-RS96A | 96 | 482*328*166 | 9.2 |
Application:
Telecommunications
Fiber to the home (FTTH)
LAN / WAN
CATV

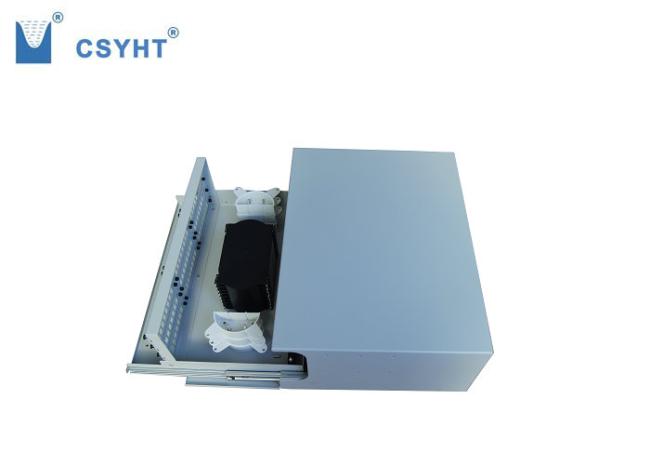

Pictures:
