144 core slidable type fiber optic patch panel with rack mounted for cabinet
144 core slidable type fiber optic patch panel with rack mounted for cabinet
Description:
ODF-RS144A is a 19inch modular design box that used for optical fiber splicing, distribution, termination and connection. It has metal sliding fittings with self-locking functions prevent the drawer from falling when moved. It is made of cold-roll steel box, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution.
Specification:
| Model | Fiber Quantity | Dimension(mm) | Net Weight(kg) |
| ODF-RS144A | 144 | 438x326.5x231.7 | 9.5 |
Features:
Standard size, light weight and reasonable structure
Slide out drawer for easy cable management
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
With metal front cover
12pcs splice trays (each 12fibers)
18pcs adapter plates (each 8pcs adapter ports)
Max. capacity 144 fibers
4 fiber cable entry ports at rear side
White or black color
Application:
Telecommunications
Fiber to the home (FTTH)
LAN / WAN
CATV

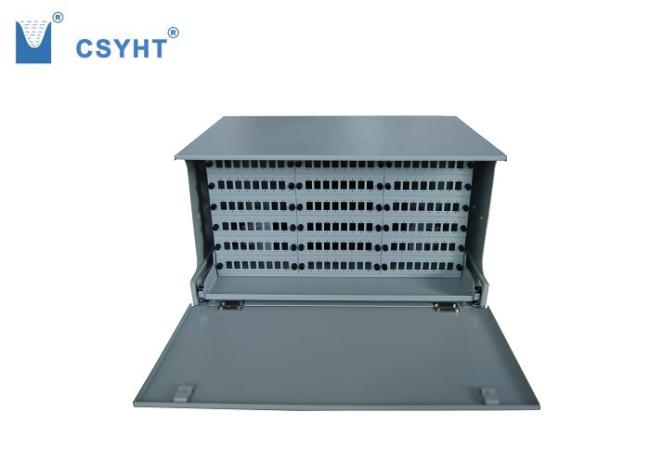

Pictures:
