1U Height Fiber Optic Termination Panel 24 Fibers Standard Size Reasonable Structure
24FO fixed fiber optic patch panel 19inch rack mounted 1U height
Description:
Fiber optic distribution box ODF-RF24 is fixed type ODF that made of 1U 19” cold-roll steel box, with plastic splice tray inside for 24 fiber splicing and distribution. It provides an economical way of splicing fiber cables in communication room or existing equipment racks where space is constrained.
Features:
Standard size, light weight and reasonable structure
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
Max. capacity 24 fibers
4 fiber cable entry ports at rear side
White or black color
Specification:
| Model | Fiber quantity | Height | Dimension(mm) | Weight(Kg) |
| ODF-RF24 | 24 | 1U | 482x295x44.5 | 3.4 |
Application:
Telecommunications
Fiber to the home (FTTH)
LAN/WAN
CATV

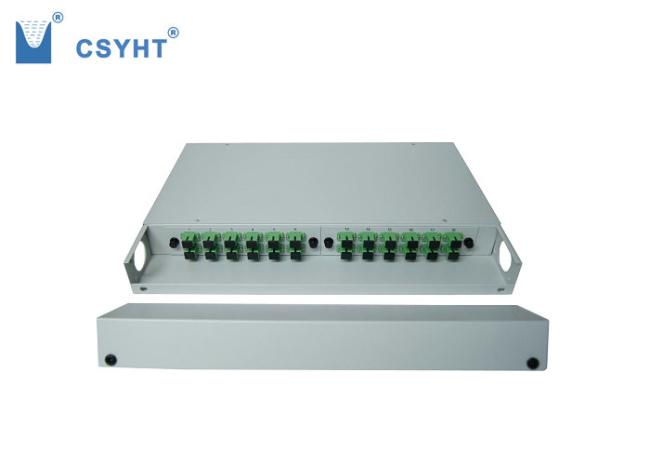

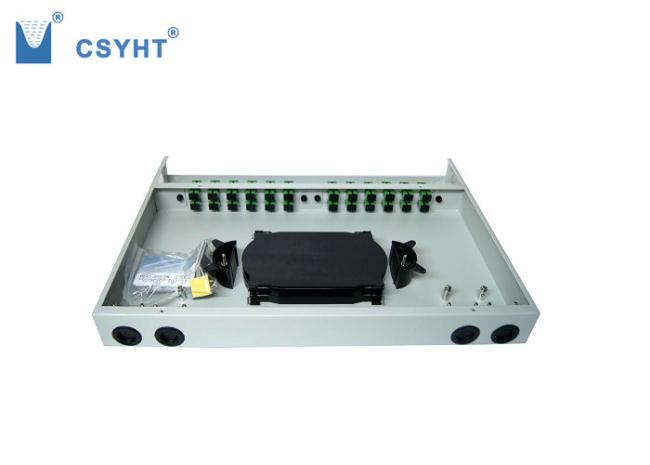

Pictures:
