FC Simplex Fiber Optic Connectors , High Durability Single Mode Fiber Optic Adapters
FC simplex fiber optic connector Single mode fiber optic adapter
FC fiber optic adapter is used in fiber optic connection, the typical use is to provide a cable to cable fiber connection.
FC fiber optic adapters are with metal housing, FC fiber optic adapters are with zirconia sleeves.
There are FC square type, FC small D type for customer option.
Features:
Discordia, ANSI, TIA/EIA, NTT and JIS compliance
High precision alignment
Low insertion loss
High return loss
Good repeatability
Good changeability
Good temperature stabilization
Material:
Sleeve material: Zirconia
Housing Material: Corrosion resistant body
Application:
CATV System
Telecommunications
Optical Networks
Testing / Measurement Instruments
Fiber to the Home
Parameter:
|
Description |
FC Fiber Optic Adapter |
|||||
|
Item NO. |
Test Item |
Unit |
Standard & Requirement | |||
| SM | MM | |||||
| PC | UPC | APC | PC | |||
| 1 | Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| 2 | Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| 3 | Exchangeability | dB | ≤0.2 | |||
| 4 | Repeatability | dB | ≤0.2 | |||
| 5 | Durability | Time | ＞1000 | |||
| 6 | Operating Temperature | ℃ | ﹣40～﹢75 | |||
| 7 | Storage Temperature | ℃ | ﹣45～﹢85 | |||

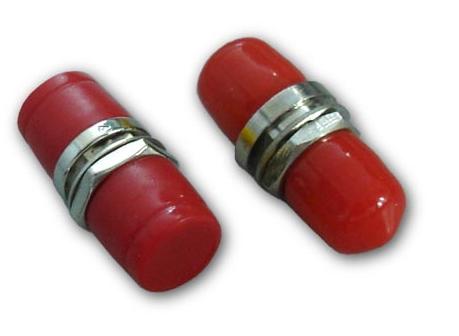

FC small D pictures:
