Black And White Optical 576 Fibre Cable Joint Closure With 1 Oval Port And 6 Round Port

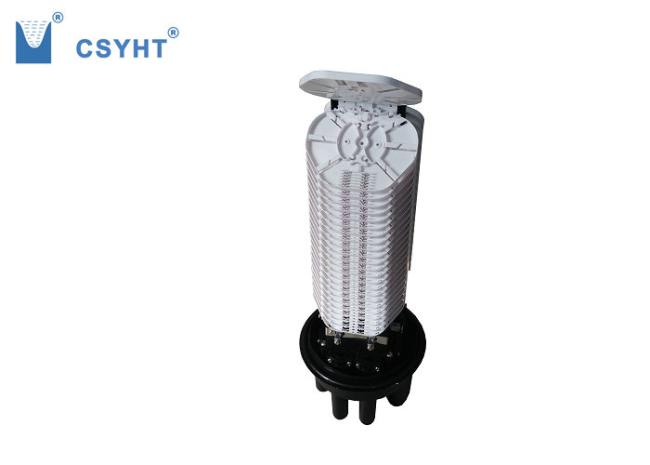

576 dome type fiber optic closure with 1 oval port and 6 round port
Description:
CV016A is a vertical type fiber optic splice closure that widely applied to the splicing, distributing variable optical cables. It is high capacity for max. 576 fiber splicing and connection. There are 48pcs fiber optic splice tray inside. The trays are easy to management and operation.
Features:
1. Splice tray: Max. 48pcs, each 12 fibers
2. Cable port: 6pcs round port φ19.9mm, 1pc oval port 38x70mm for supporting cable entry without 3. cutting.
3. All cable ports are heat shrink sealing.
4. Waterproof: IP68
5. Wall-mounting, aerial hanger and pole holding
6. Material: high impact resistance PP materials with UV
Specification:
| Model | Splice tray | Fiber core | Dimension(mm) |
| CV016A | 48 trays, each 12 fibers | 576 fibers | Φ228 × 527.5 |
Pictures:
