Dust Proof Fiber Optic Closure , Dome Type 24 Fiber Optic Cable Joint Box
Dome type 24 fiber optic closure with 4 port and 8 drop cable port
Description:

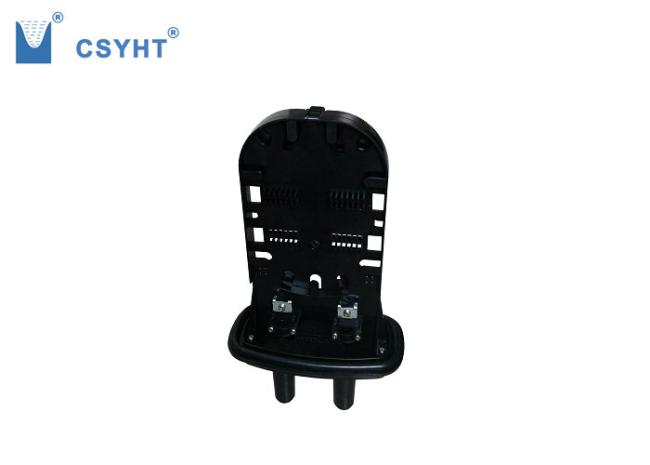

CV018 is a special design fiber optic splice closure that used for optical fiber cable splicing, distribution and protection. It has space for loading PLC 1:8 steel tube type splitter and SC simplex adapters. It is dome type, water proof and dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct, buried application.
Feature:
1. Cable port: 2pcs round port φ15mm, 2pcs round port φ13mm, 8pcs 2*3mm drop cable ports.
2. The 2 cable ports are heat shrink sealing.
3. Cable entry without cutting.
4. 1pc splice tray, max. 24 fibers
5. Outdoor aerial hanger and pole holding.
6. Material: high impact resistance PP materials with UV
7. Can load 1pc PLC 1:8 splitter and 9pcs SC simplex adapters
Specification:
| Model | Max. capacity | Dimension | Material | Splice tray |
| CV018 | 24 fibers | 220x300x119.4 | PP | 1pc, 24 fibers |
Accessories:
| Item | Specification | Qty |
| Heat protect shrinkable sleeve | L=60mm | As per using capacity |
| Cable tie | L=120mm | 6pcs |
| Heat shrinkable cable tube | Ф30*120mm, black | 2pcs |
| Aerial hanged | Stainless steel | 1 set |
Pictures:
