FTTH drop cable protection box 1 fiber 1 in 1 out can load SC fast connector
FTTH drop cable protection box 1 fiber 1 in 1 out can load SC fast connector
Description:
Drop Cable Protect Box PFB-MINI is used for drop cable connecting, splice and protection.Inside can install 1pc SC simplex adapter and 2pcs fast connector connection. The box is made of High quality ABS Material.Box cover and bottom utilize silicone rubber ring sealing.Boths side can lead in/out 2*3mm FTTH drop cable or 3mm round cable.Wall-mount application,two installation hole distance is 150mm.
Feature:
1.Fast connecting,Waterproof IP64
2.Small size, nice shape, convenient Installation.
3.Splice contact protection is stable&reliable,Protect it from damage or broken by external force
Specification:
Size: 160*48*16mm
Material: High quality ABS Material
Net weight:40g.
Product configuration:
| Name | specification | Qty(pcs) | Remark |
| Nylon cable tie | 3*120mm | 2pcs | free |
| Plastic expansion tube | ￠6mm | 2PCS | free |
| Tapping screw | C type 4*20 | 2PCS | free |
| Fiber optic connector,fast connector,Mechanical splicer optional. | |||

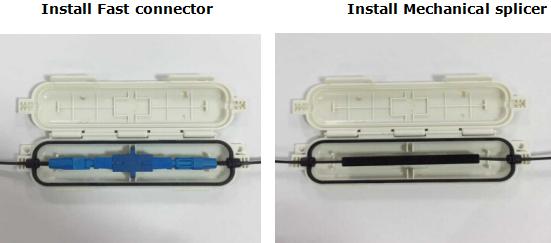

Picture:
