8 port outdoor FTTH box 2 cable in 8 drop cable out load PLC 1 x 8 splitter
8 port outdoor FTTH box 2 cable in 8 drop cable out load PLC 1 x 8 splitter
Description:
OTB-0208A is a FTTH box that 8 fibers capacity. It can load SC, FC, LC, ST adapters and PLC 1:8 splitter for fiber distribution and connection.
Fiber optic terminal box is an equipment that mainly used for the optical cable distrtibution, the fusion of optical cable and pigtail, and the strorage and protection of the fiber. It is suitable for the direct and branch connection of the optical fiber cable and protects the optical fiber connector.
Features
Industry Standard User Interface, be made of high impact plastic.
Can accommodate 1x4,1x8, 2x4,2x8 PLC splitter.
Indoor or outdoor using, waterproof.
Up to 8 FTTH drops.
wall mounting and pole mounting application.
OTB-0208A have 2 inlet ports, 9 outlet ports
Specification:
| Model | Dimension | Material | Adapter port | Capacity | Cable port | Application |
| OTB-0208A | 206.8x230.3x52.7mm | ABS | 8 SC simplex | 8 fibers | 2 entry and 9 drop cable output | Outdoor wall mounted and pole mounted |
Application:
FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

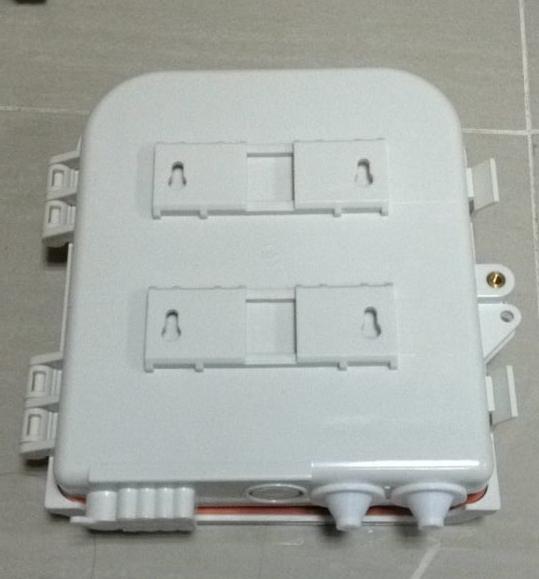

Pictures:
