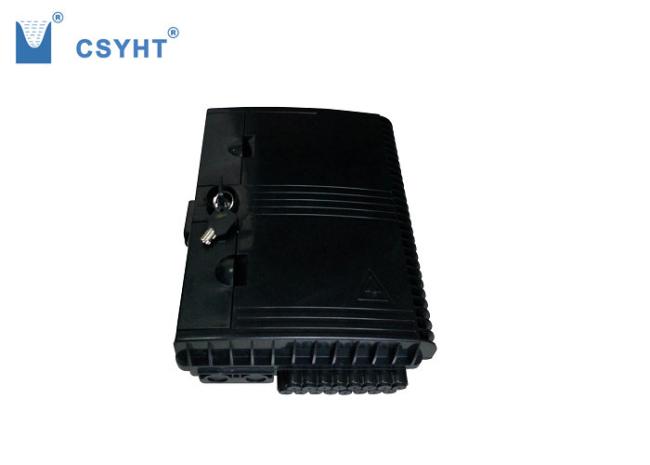

Outdoor pole mounted FTTH box 16 ports made by plastic for fiber connection
Outdoor pole mounted FTTH box 16 ports made by plastic for fiber connection
Description:
FTTH fiber optic terminal box OTB-0216-D2 is for the distribution and terminal connection of various kinds of optical fiber system. The optical cables, patch cords or pigtails are connected inside box. It has two hoops for closing the door tightly.
Features:
Material: ABS plastic.
Can accommodate 1x4,1x8,1X16,2x4,2x8 & 2x16 PLC splitter.
Rainfall resistant, IP65 outdoor using.
Wall mounting and pole mounting application.
2pcs cable entry ports Φ8mm; 16pcs FTTH drop cable ports 3*2mm with cable fixing accessory
Can load 16pcs SC,LC,ST,FC adapter
With cable guider inside of box bottom
Specification:
| Model | Material | Dimension | Capacity |
| OTB-0216-D2 | ABS plastic | 304.1x236.5x104.3mm | 16 fibers |
Application:
FTTH access network
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
Pictures:
