16 port FTTH box load PLC splitter cassette for fiber distribution
16 port FTTH box load PLC splitter cassette for fiber distribution
Description:
FTTH box OTB-0216-D3 is for loading plastic fiber optic splitter cassette for fiber distribution. It can load 2pcs 1x8 splitter cassette or 1pc 1x16 splitter cassette. It has 2 cable entry port and 16pcs drop cable output. And cable entry without cutting is available.
Features:
Rainfall resistant, IP65 outdoor using.
Wall mounting and pole mounting application.
Made of ABS plastic.
Can load 1pc 1x16 or 2pcs 1x8 splitter cassette.
2pcs cable entry ports with M20 PG gland; 16pcs exit ports for 2*3mm FTTH drop cable.
Specification:
| Model | Capacity | Dimension | Splitter cassette |
| OTB-0216-D3 | 16 fibers | 236.5x304.1x104.3mm | 2pcs 1x8 or 1pc 1x16 splitter cassette |
Application:
Data communications Networks
Local Area Networks
FTTH access network
Telecommunication Networks
CATV Networks

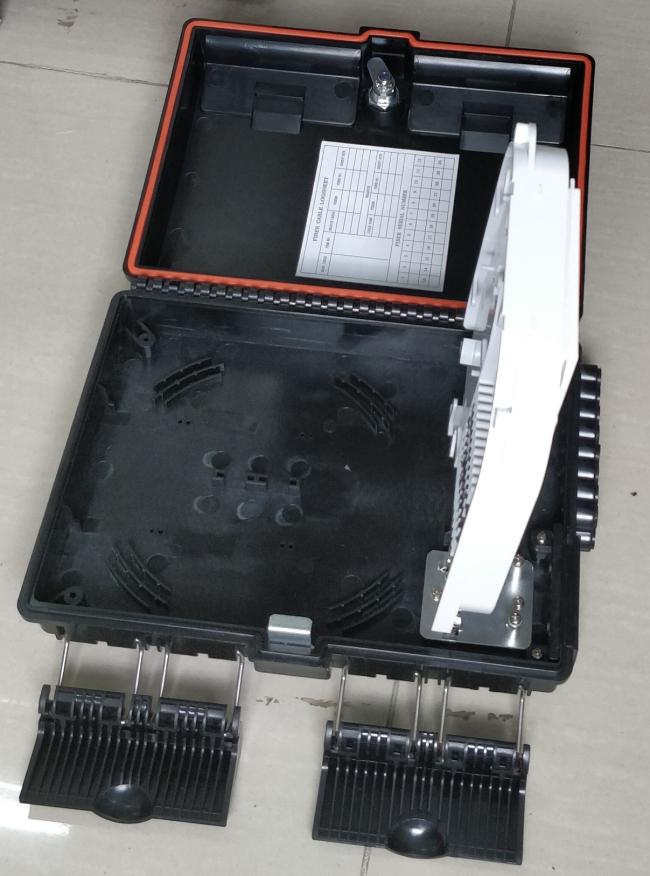

Pictures:
