1800 Fibers 2.2M Fiber Optic Cabinet 750x600x2200mm In Fiber Optic Network Center
2.2M indoor fiber optic cabinet 1800 fibers 19inch in fiber optic network center
GPX-1800 fiber optic cabinet has a front door with 15pcs transparent windows, it make it easy to observation and maintenance after installation. It load rotary fiber optic patch panel for max. 1800 fibers connection. It is a high-capacity, high-density fiber distribution frame in optical access network to achieve the fiber optic lines connection, distribution and scheduling.
Specification:
| Model | Dimension | Material | Using height | Application |
| GPX-1800 | 750x600x2200 | cold roll steel | 46U |
Indoor floor standing, 19inch Front one door with 15pcs transparent windows Rear one metal door, left and right side doors |
Features:
1. Modular structure for instore,splice and organize cable.
2. Built-in direct melt unit capable of providing direct connection functionality
3. With secure and reliable fastening and grounding protection devices for the optic fiber
4. Transparent front door, visibility good.
5. With high intensity and anti-erosion performance
6. Cold roll steel frame, electrostatic spraying in the whole surface, nice appearance.
7. Capacity can be flexibly customized as required.
8. Applicable to strap-shaped and non-strap shaped fibers, and inserting installation of SC, FC, ST (additional flange) adapters.
Technical Parameters:
1. Nominal work wave-length: 850nm, 1310nm, 1550nm
2. Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC)
3. Isolation resistance:≥1000MΩ/500V(DC)
4. Durability:＞1000 times
5. Anti-voltage strength: ≥3000V(DC)/1min
6. Operating temperature: -10℃-+45℃
7. Storage temperature: -40℃ +70℃
8. Relative humidity:≤85%(+30℃)
9. Atmospheric pressure: 70~106 KPa
10. Insertion loss: ≤0.3dB
Application:
Communications
Networks
Industrial control
Building automation

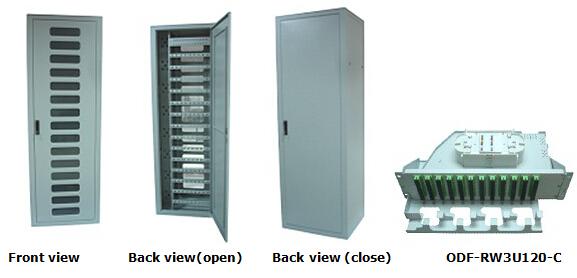

Pictures:
