2 / 4 Core Armoured Fiber Optic Pigtail , Blue Single Mode / Multimode Pigtail
2 core , 4 core armoured fiber optic pigtail single mode , multimode optic cable
Armoured fiber optic cable are with stainless steel tube inside the outer jacket to protect the central unit of the cable. So they will not get damage even they are stepped by an adult and bit by rodents.
When use such armoured fiber optic pigtail, people do not need to worry that the rodent animals like the rats may bite the cables and make them broken.
Although armoured fiber optic pigtail are strong, they are actually as flexible as standard fiber optic patch cords, they can be bend randomly without being broken.
Features:
Steel tape armoured inside outer jacket
Resist damage by improper twist
Resistance of pressure and rodent bite
Different fiber optic connector types optional
Low insertion loss
Custom cable lengths optional
FC, SC, ST, LC .... Connector optional
Application:
Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
Military industry
Medical
Specification:
| Parameter | PC(SM) | APC(SM) | PC(MM) |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Storage Temperature | -40℃~+90℃ | ||
| Operating Temperature | -40℃~+85℃ | ||
| Repeatability of lL | ≤0.2dB | ||
| Service Life | ＞1000 cycles | ||

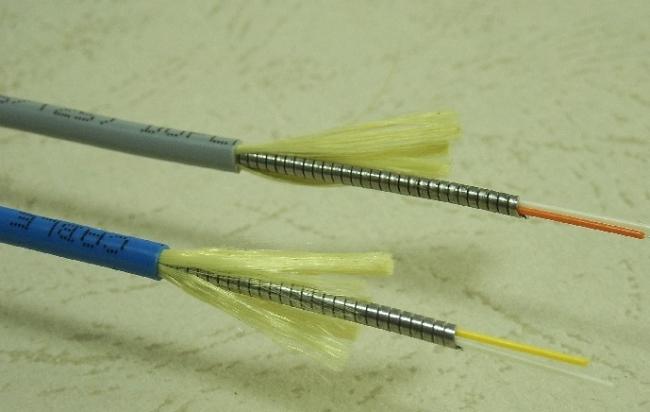

Pictures:
