FC Male To Female Single Mode Fiber Attenuator 1310nm / 1550nm Operating Wavelength
FC Male to female fiber optic attenuator SM 5dB , 15dB , 20dB
FC/UPC single mode male to female fiber optic attenuator is used for reducing the power of the light in the fiber optic network. There are 3dB, 5dB, 15dB, 20dB, 25d ... for choice.
Material:
Housing Material: Metal
Sleeve: Ceramic Zirconia
Features:
Low back reflection and Low PDL
High precision attenuation value
Precise control of attenuation range
Simple manipulation
Connector type: FC
Application:
Fiber optical telecommunication system
Fiber optical CATV
Fiber optical sensor
Testing equipment
| Item | Unit | Parameter |
| Operating Wavelength | Nm | 1310/1550 |
| Attenuation Range | dB | 1-10dB(1dB step), 15, 20, 25, 30dB |
| Return Loss | dB | PC:≥50 UPC: ≥55 APC: ≥60 |
| Attenuation Tolerance | dB | ≤1.0 (11-30dB) |
| Working Temperature | ℃ | -25℃~+75℃ |
| Storage Temperature | ℃ | -40℃~+ 85℃ |
Order Information:
Connector Type: FC
Application: UPC/APC
Wavelength: 1310nm, 1550nm or 1310/1550nm

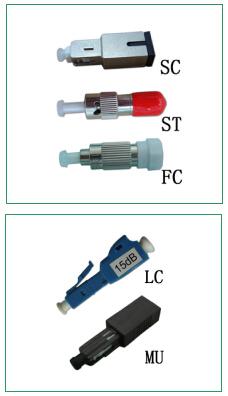

Pictures:
