2.0mm 15 Meters Fiber Optic Patch Cord Duplex PVC Or LSZH Jacket Good In Exchange
MTRJ fiber optic patch cord duplex 2.0mm MM fiber 15 meters PVC or LSZH jacket
MT-RJ fiber cable is used in two fiber connection and it is well suited for high density applications.

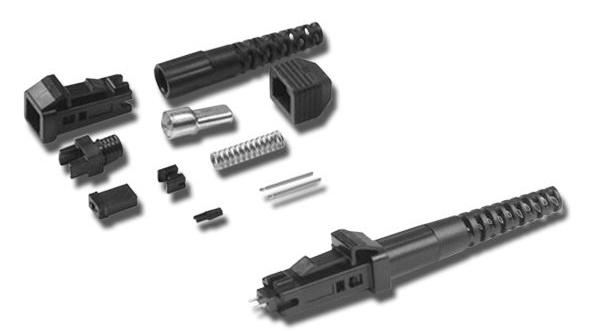

MT-RJ fiber patch connectors utilize precision molded MT ferrules pioneered by NTT, together with precision metal guide pins and precise housing dimensions to ensure fiber alignment when mating. It is reliable and simple to terminate.
Specification:
| Parameter | Unit | Standard & Requirement | ||
| PC(SM) | UPC(SM) | PC(MM) | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥35 |
| Mechanical Endurance (500T) | dB | ≤0.2 | ||
| Exchangeability | dB | ≤0.2 | ||
| Durability | Time | ＞1000 | ||
| Vibration | dB | ≤0.2 | ||
| Operating Temperature | ℃ | ﹣40 ～﹢75 | ||
| Storage Temperature | ℃ | ﹣45 ～﹢85 | ||
| Cable Diameter | mm | Ф3.0, Ф2.0, Ф0.9 | ||
Features:
Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Excellent mechanical endurance
Good in repeatability
Good in exchange
Application:
CATV
Gigabit Ethernet
Interconnection for O/E Modules
Data Processing Networks
Industrial and Medical; Premise Installations
