ODB 16 Optic Distributioini Box

OTB-P023 is an Optic Distributioini Box. This ODB has 16 O/P cable port, 18 SC simplex connector port, can load steel tube type splitter. The network installer make it outdoor pole mounted application. Except 16 cores, we produce 24 cores for choice.

Description:

OTB-P023 is used as an optic distribution box that for the feeder cable to connect with drop cable in FTTx communication network systems. It has reasonable space for fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.

Features:

Enclosed structure, nice shape

Clamping for feeder cable and drop cable, fiber splicing, fixation, distribution, storage ... etc all in one

Good properties of dust, and moisture proofing, IP65

Material: ABS plastic

3pcs fiber optic splice trays, each 12 fibers; 36 fibers (Max.can load 4pcs tray for 48 fiber splicing)

Can load 18pcs SC simplex adapter

Can load 2pcs 1:8 PLC splitter or 1pc PLC 1:16 steel tube type splitter

2pcs Φ15mm entry cable ports;2pcs Φ18mm entry cable ports & 16pcs 2*3mm drop cable ports

Wall mounting and pole mounting application

Waterproof, outdoor using, IP65

Specification:

Application:

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

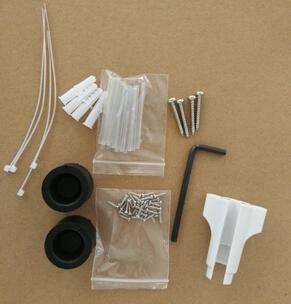

Accessories:

FAQ:

1. Can YHT support some modification for this box?

Yes. You can send us your modified requirements to us. And we can support design and do a new box for you.

2. What is the lead time?

It is about 7 days production time after confirm order. The actual delivery date will be checked as per production schedule.

3. What is the payment terms?

YHT support 30% T/T before production, the balance T/T before shipment.

4. What is the packing label?

It is neutral label.
