Durable 18 Fiber Optic Cable Junction Box , Ftth Distribution Terminal Box IP65
18 fiber optic FTTH terminal box with low price outdoor mounted new style

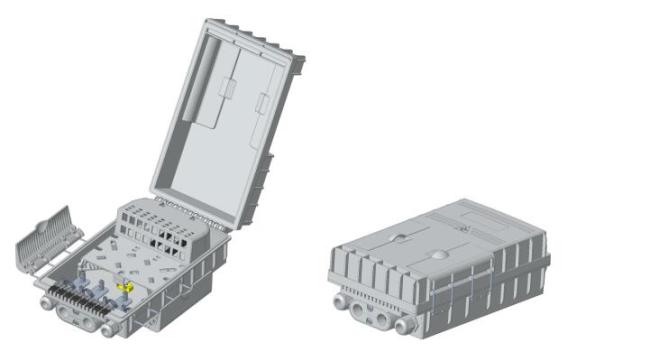

OTB-P034 is a plastic fiber optic terminal box that suitable for optical fiber splicing, distribution and protection.It can load 18pcs SC simplex adapters and 1pc PLC 1:16 steel tube type splitter. It support 16 drop cable output and cable entry without cutting.
Features:
Material: ABS+UV plastic
Max. 18pcs SC simplex adapter
Can load 1pc 1:16 steel tube type splitter
Cable ports: 2pcs M20 cable ports for Φ6~11mm cable entry
1 oval port support Φ6~18mm cable entry without cutting
16pcs 2*3mm drop cable output ports
Wall mounting and pole mounting application
Waterproof, outdoor using, IP65
Specification:

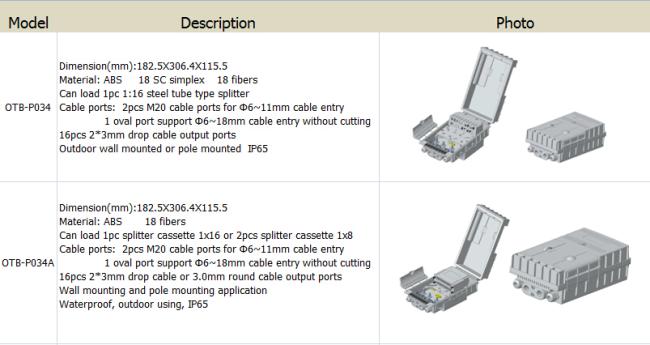

| Model | Dimension(mm) | Material | Adapter port | Splicing capacity | Cable port | Application |
| OTB-P034 | 182.5X306.4X115.5 | ABS | 18 SC simplex | 18 fibers | 2 PG gland + 1 oval + 16 drop cable port | Outdoor wall mounted or pole mounted |
YHT is a 16 years professional manufacturer of fiber optic products that certified by ISO9001:2015.
