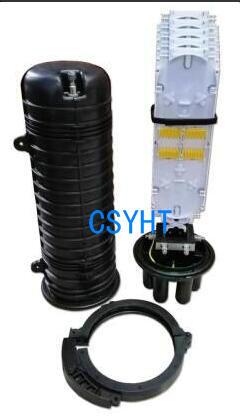

PP Dome Vertical Type Fiber Optic Junction Closure 144 Fibers With Grounding Device
Fiber Optic Splice Closure
CV023
Description:
CV023 is a dome type fiber optic splice closure that used for optical fiber cable splicing, joint and protection. It is water
proof and dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct, buried application.
Features:
Material: Outside high impact PP+UV closure body, inside ABS splice tray
Sealing structure: Heat shrinkable sealing
IP standard: IP68 waterproof and dust proof, with pressure valve.
Cable port: 1 oval cable port 69*40mm and 4 round cable port Φ25mm
Splice tray qty: Max. 6pcs OST-016 splice trays,
each tray 24 fibers splicing.
Capacity: Max. 144 fibers
Electrical performance: with grounding device
Specification:
| Model | Dimension | Material | Splice tray | Max. capacity | Cable port | Structure |
| CV023 | Ф151.7x549mm | PP | 6 PCS | 144 FO | 4 port & 1 oval port | Heat shrinkable sealing |
Cable management drawings:
1-fiber optic cable 2- cable strengthen core fixing part
3- heat protect shrinkable sleeve 4- fiber optic splice tray
Accessories:
| Item | Name | Specification | Qty |
| 1 | Fiber optic heat protect shrinkable sleeve | 60*2.6*1.2 mm | As per using capacity |
| 2 | Cable tie | Length 120mm | 10 pcs |
| 3 | Transparent tube | Plastic outside diameterФ5mm | 1 meter |
| 4 | Heat shrinkable tube | Ф30*100mm black | 4 pcs |
| 5 | Heat shrinkable tube | Ф60*120mm black | 1 pcs |
| 6 | Aerial hanged accessories | Stainless steel | 1 set |
Optional accessories:
| Item | Name | Model | Qty | Remark |
| 1 | Pole mounted accessories | CV010-76 | 1 set | Pole mounted application |
Packing information:
4pcs per carton, each carton 57*45*43.5CM
