SC Fast Connector FTTH Fiber Optic Terminal Box High Success Rate Long Lifespan
Price:
USD0.5~2.5/Piece
MOQ:
100PCS
Delivery Time:
10days
Brand:
CSYHT
Product Description
Description:
The Optical Fiber Fast Connector non-preset stub technologies. Precision metallic V-Groove components
with co-axial self centering, excellent and durable fixing property. The structure base on unique box-building
crimping technology. Presenting the Bending fiber prevent the cable from dragging. Integrated protection of
the casing to withstand harsh indoor environment. After terminating, both the optical and mechanical
performance reach the standard for FTTH.
Characteristics:
Good performance and high success rate.
Good performance and high success rate.
Easiness in installation with average splicing time of 15 sec
Special tool is simple and convenient to use.
Reusable and repeat operation times are up to 100.
Integrated protection of the casing to prevent the connector form impact
On line tension is up to 20N to protect the connector from the dragging
The maximum tension is up to 100N. It's the most safety connector
Storage/Operating Temperature: -40°C to +70°C
Application:
FTTX/FTTH fiber to the home
Local area network and smart grid
Mining and Oil
Security equipment
![]()
![]()
Security equipment
Optical Characteristics:
| Items | G.657A | Super Soft Fiber | |
| Insert loss | @1310 nm | ≤ 0.3dB | ≤ 0.25 dB |
| @1550 nm | ≤ 0.35 dB | ≤ 0.3 dB | |
| Return loss | @1310 nm | ≥ 40 dB | ≥ 45 dB |
| @1550 nm | ≥ 40 dB | ≥ 45 dB |
Environment Parameters
| Test Item | Change IL | Change RL | Test Condition |
| Mechanical life | ≤ 0.2 dB | ≤ 5 dB | 500 (times)300/100010D/20D |
| On line tension | ≤ 0.2 dB | ≤ 5 dB | 20N300/100010D/20D |
| Impation | ≤ 0.2 dB | ≤ 5 dB | 4m high / 3 axis/ |
| High temperature storage | ≤ 0.2 dB | ≤ 5 dB | 80C / 96(hours)300/100010D/20D |
| Low temperature storage | ≤ 0.2 dB | ≤ 5 dB | -40C / 96(hours) |
| Temperature cycling | ≤ 0.2 dB | ≤ 5 dB | -40C - 75C / 96(hours) |

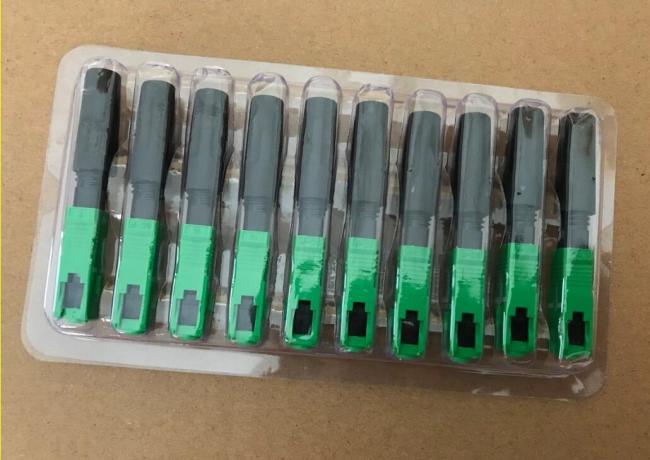

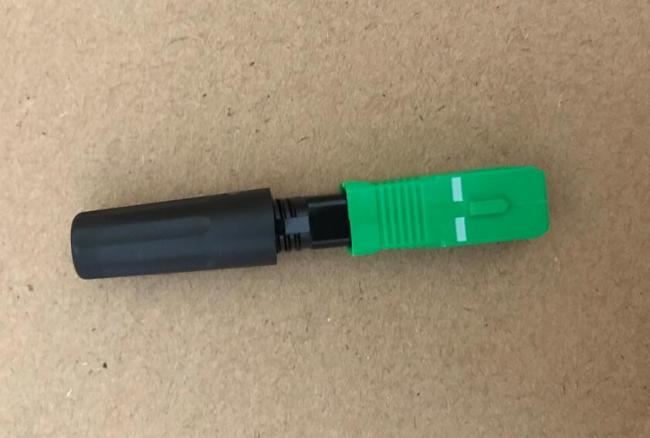

Details:
