ABS PP Material Outdoor Fiber Optic Enclosures , Fiber Optic Joint Box 4 Cable Port
Fiber Optic Splice Closure
CH037
Description:

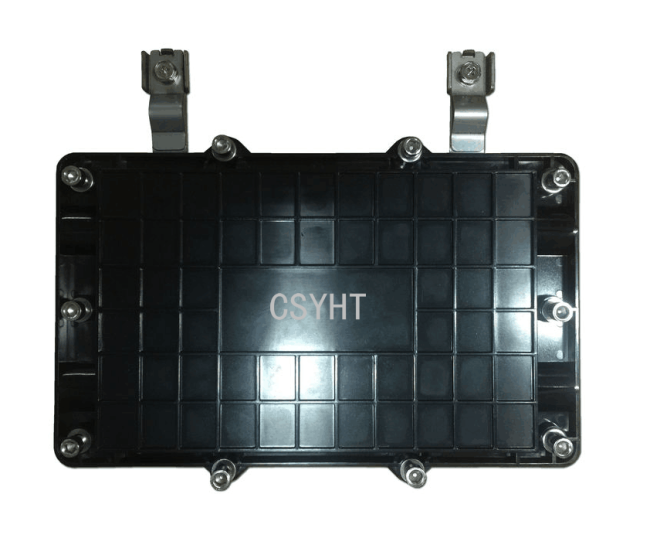

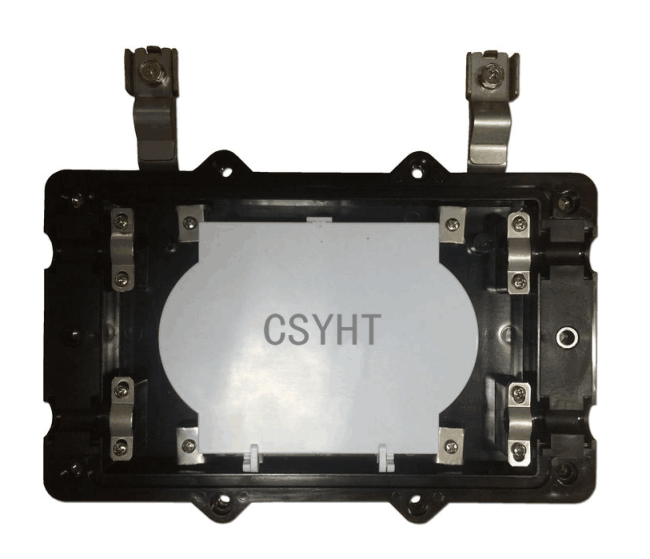

CH037 is an inline type fiber optic splice closure for fiber splicing and protection. It is made of high-quality ABS+PP material, waterproof, IP65 for outdoor aerial hanged application.It is applicable to the protection of direct connection and branch connection of optical cable. And it is mechanical sealing structure, can be opened repeatedly, with single fiber and ribbon sleeve slot, easy to operate and maintain.
Features:
Small size, reasonable design for cable protection
ABS+PP plastic material, high strength, black color
4 cable port (2 in 2 out) for max.Φ16mm cable entry/exist

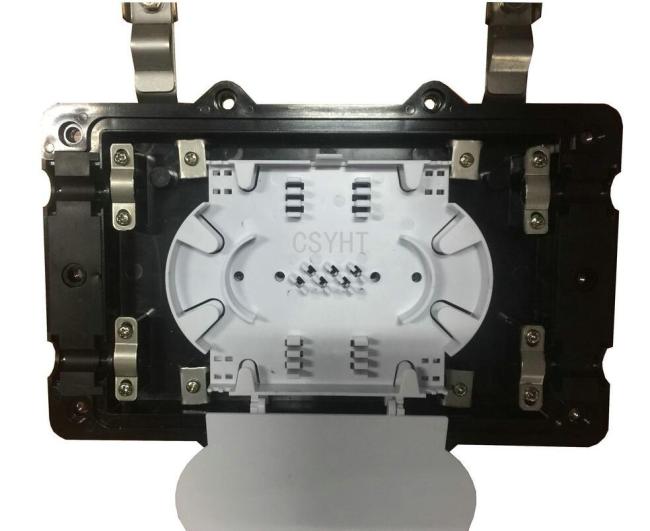

2 splice tray, each tray has 6 single fiber slots & 3 ribbon heat shrinkable sleeve slots
Max. 24 single fibers splicing; if ribbon fiber, max. 36 fibers
Dust-proof and waterproof, IP65
Aerial hang application
Dimension: 250x169.5x50.2mm

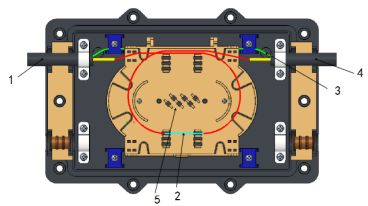

Installation:
1.Cable entry port 2. Heat shrinkable protection sleeve
3.Cable strengthen member 4. Cable exit port 5. Ribbon heat shrinkable sleeve slot
Packing informaiton:
20pcs per carton; each carton 58*38*34CM
Accessories:
| Name | Specification | Qty |
| Self adhesive tape | 15mm*2mm*500mm black | 1 pc |
| Cable tie | 3mm*120mm white | 5 pcs |
| Inner hexagon spanner | S5 black | 1 pc |
| Heat shrinkable protection sleeve | 60MM*3.0*1.5 | 24 pcs |
Optional accessories:
| Name | Specification | Qty |
| Aerial hanged kit | CH037-10 | 1 set |
