18 Fibers Optical Network Terminal Box With Plastic Splitter Cassette 1X8 1X16
Fiber Optic Terminal Box
OTB-P034
Description:
OTB-P034 is a plastic fiber optic terminal box that suitable for optical fiber splicing, distribution and protection. It can load 18pcs SC simplex adapters and 1pc PLC 1:16 steel tube type splitter. It support 16 drop cable output and cable entry without cutting.
Features:
Material: ABS+UV plastic
Max. 18pcs SC simplex adapter
Can load 1pc 1:16 steel tube type splitter
Cable ports: 2pcs M20 cable ports for Φ6~11mm cable entry
1 oval port support Φ6~18mm cable entry without cutting
16pcs 2*3mm drop cable output ports
Wall mounting and pole mounting application
Waterproof, outdoor using, IP65
Specification:
| Model | Dimension(mm) | Material | Adapter port | Splicing capacity | Cable port | Application |
| OTB-P034 | 182.5X306.4X115.5 | ABS | 18 SC simplex | 18 fibers | 2 PG gland + 1 oval + 16 drop cable port | Outdoor wall mounted or pole mounted |
Application:
FTTH access network
Telecommunication Networks
CATV Networks
Data communications Networks

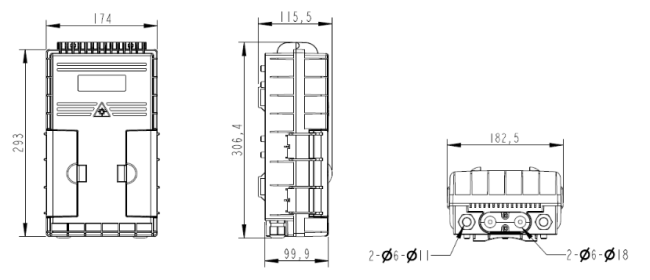

Drawings: (mm)

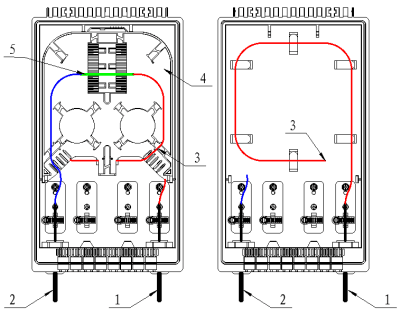

Instruction:
1 - Cable entry port 2 - Cable output port 3 - Fiber optic cable
4 - Fiber optic splice tray 5 - Heat protection shrinkable sleeve
Accessories:
| Item | Product | Specification | Qty |
| 1 | Heat protection shrinkable sleeve | 60mm*2.6*1.2 | As per using capacity |
| 2 | Cable tie | 3*120mm white | 6 pcs |
| 3 | Countersunk Screws | C type 4*30 metal | 4 pcs |
| 4 | Plastic Expansion Pipe | Φ6mm plastic white | 4 pcs |
| 5 | Insulating tape | 0.15*17mm 8 yards black | 1 roll |
Packing information:
9pcs per carton, each carton 59x33x40cm
