Waterproof IP65 Fiber Optic Distribution Unit , Fiber Optic Cabinet Long Lifespan
FTTH outdoor fiber optic distribution box 36 FIBER ftth cable termination box

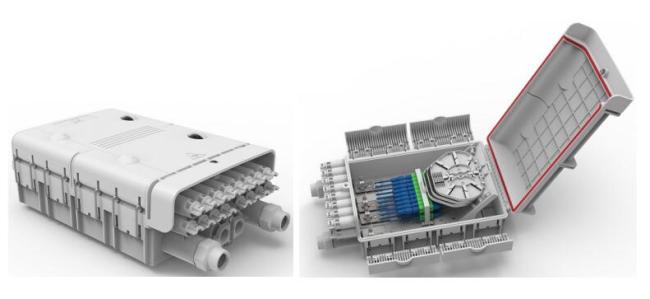

OTB-P023 is a fiber optic terminal box that suitable for optical fiber splicing, distribution and protection. It is reasonable design for fiber arrangement, and for outdoor wall mounted and pole mounted application.
Features:
Material: ABS plastic
3pcs fiber optic splice trays, each 12 fibers; 36 fibers (Max.can load 4pcs tray for 48 fiber splicing)
Can load 18pcs SC simplex adapter
Can load 2pcs 1:8 PLC splitter or 1pc PLC 1:16 steel tube type splitter
2pcs Φ15mm entry cable ports;2pcs Φ18mm entry cable ports & 16pcs 2*3mm drop cable ports
Wall mounting and pole mounting application
Waterproof, outdoor using, IP65
Specification:
| Model | Capacity | Dimension | Adapter port |
| OTB-P023 | 36 fibers | 232x358.5x130.5mm | Max. 18pcs SC simplex adapters |
Application:
FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
YHT is a 16 years professional manufacturer of fiber optic products that certified by ISO9001:2015.
1. Does YHT is real manufacturer?
Yes. YHT has its R&D technical person, its own factory.
2. Can YHT support some modification for this box?
Yes. You can send us your modified requirements to us.
And we can support design and do a new box for you.
3. What is the lead time?
It is about 7 days production time after confirm order.
The actual delivery date will be checked as per production schedule.
4. Can YHT support better price?
Yes, we can support better cost as per different qty, requirements, packing etc.
