Cold Roll Steel Material Fiber Optic Cable Termination Box Din Rail Mounted
Price:
USD7.3
MOQ:
50
Delivery Time:
7days
Brand:
CSYHT
Product Description
cold roll steel mateirl din rail mounted fiber optic terminal box terminal rack

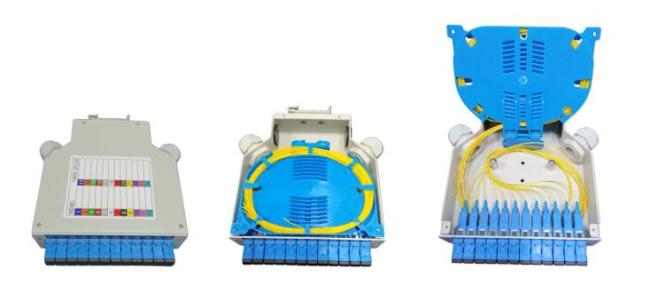

DIN-00 is a DIN rail mounted fiber optic terminal box that used for fiber connection and distribution. It is made of aluminum, inside with plastic splice tray, light weight, good to use.
Features:
Reasonable design, aluminum box, light weight
Electrostatic powder painting, grey or black color
ABS plastic blue splice tray, rotatable design, compact structure
Max. 24 fibers capacity
FC, ST, LC, SC ... different adapter port available
DIN rail mounted application
Specification:
| Model | Dimension | Material | Adapter port | Splicing capacity | Cable port | Application |
| DIN-00 | 133x136.6x35mm | Aluminum | 12 SC simplex | Max. 24 fibers | 4 ports | DIN rail mounted |
Accessories:
| Item | Name | Specification | Unit | Qty |
| 1 | Heat shrinkable protection sleeves | 45*2.6*1.2mm | pcs | As per using capacity |
| 2 | Cable tie | 3*120mm white | pcs | 2 |

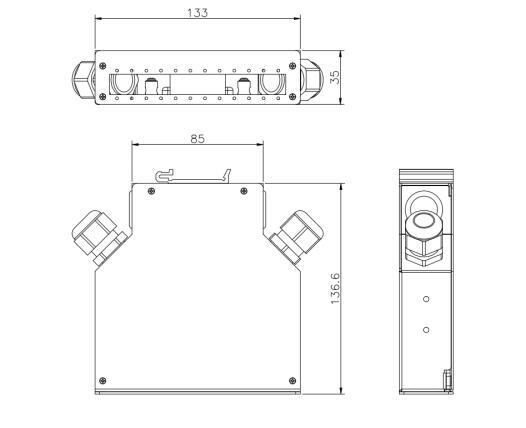

Drawings: (mm)

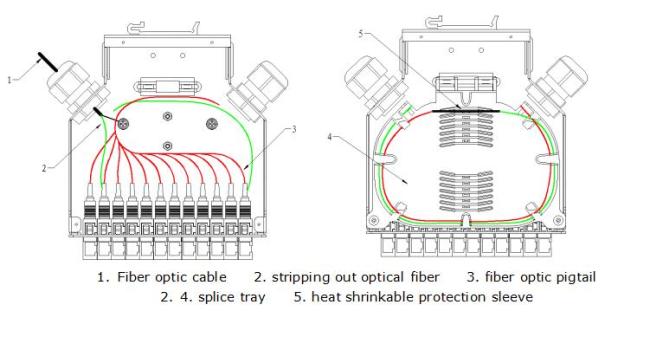

Cable management drawings:
- Fiber optic cable 2. stripping out optical fiber 3. fiber optic pigtail
- 4. splice tray 5. heat shrinkable protection sleeve
YHT is a 16 years professional manufacturer of fiber optic products that certified by ISO9001:2015.
