48 Fibers Horizontal FTTX Fiber Optic Plc Splitter , Fiber Optic Joint Closure

48Fibers FTTX fiber horizontal splitter closure fiber joint closure

The CH031 fiber optic splice closure is designed for aerial strand-mount FTTH drop locations where drop cables are spliced to distribution cables.

These free breathing closures combine grommet cable sealing technology and splice tray, the splitter module is also available. Aerial Weather tight Splice Closures are suitable for special feature with Aerial Self-Supported cable. These durable, easy to install closureswill increase productivity, reduce labor expenses and last through the life time of your network.

Features:

• The closure casing is made of industrial plastic ABS.
• Integrated with Splitter cassette and adaptor for patching.
• Vulcanized Silicone Rubber Seal, Protection grade: IP65.
• Easy to maintain and extend the capacity.
• Two tier construction, bottom for splicing, top for splitting.
• Strengthen buckle design for the easy access of aerial closure.
• 2 pcs of 1*8 splitter can be installed as an option.
• Special bolt and key to prevent unauthorized access to closure.
• 2 ports left and 2 ports right for aerial messenger cable fixation and drop cable entrance(maximum support 16 pcs of drop cable).
• Re-useable grommet sealing open and close easily for adding or removing drop cables providing efficient cable installation with no mess .

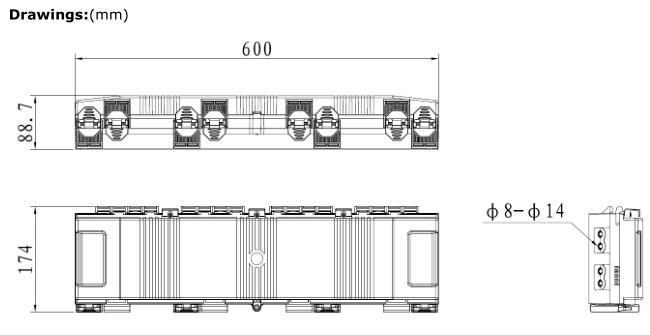

Dimension drawing:

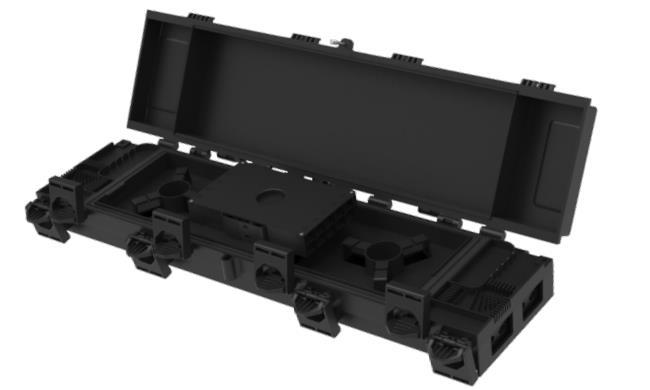

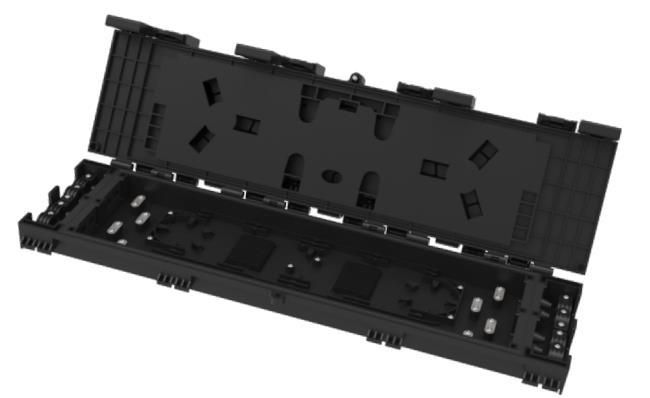

Product 3D drawing:
