GPON IP68 576 Core Fiber Optic Splice Joint Closure FTTH Heat Shrinkable Sealing
Price:
USD22/PC
MOQ:
50PCS
Delivery Time:
8 days
Product Description
FTTH GPON IP68 Max. 576 Core Fiber Optic Splice Joint Closure
Fiber Optic Splice Closure,Dome Type (CV015E),Number of ports:5 (pieces),1 oval hole,4 round holes,Capacity of the splice closure, Ribbon: up to 576 core, each tray 144 core. Outside Dimension: Ф201.5x509.1mm
Scope of application:
This Installation Manual suits for the Fiber Optic Splice Closure, as the guidance of proper installation.
The scope of application is: aerial, underground, pipeline, hand-holes. The ambient temperature ranges from -40 to 65℃.
Specification:
| Model | Dimension | Material | Splice tray | Max. capacity | Cable port | Feature |
| CV015E | Ф201.5x509.1mm | ABS+PC | 4 PCS | 576 FO | 4 port & 1 oval port | Ribbon heat shrinkable sleeve |

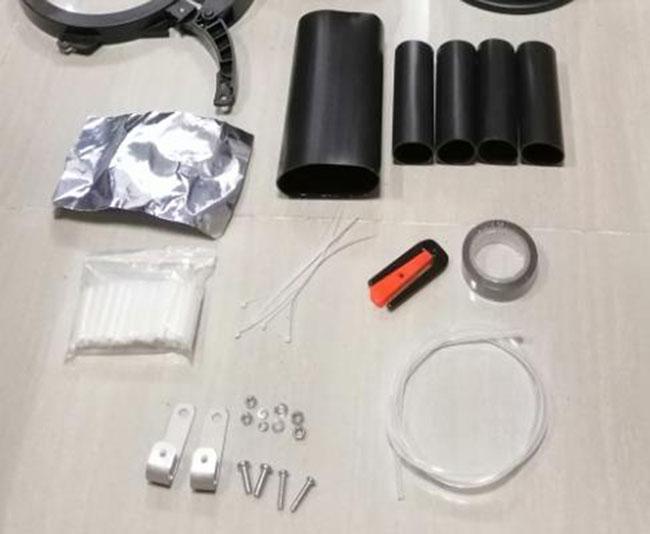

Standard accessories:
| Item | Name | Specification | Qty |
| 1 | Ribbon heat protect shrinkable sleeve | 40mm*3.9mm (Single ceramic) | As per using capacity |
| 2 | Cable tie | Length 120mm | 10 pcs |
| 3 | Insulating tape | 0.15*17mm*8 yards | 1 roll |
| 4 | Transparent tube | Plastic Ф5*0.6mm | 0.8 meter |
| 5 | Heat shrinkable tube | Ф30*100mm black | 4 pcs |
| 6 | Heat shrinkable tube | Ф60*150mm black | 1 pc |
| 7 | Branching device | S | 1 pc |
| 8 | Silver paper | 15*10cm, with adhesive tape | 1pc |
| 9 | Aerial hanged accessories | Stainless steel | 1 set |

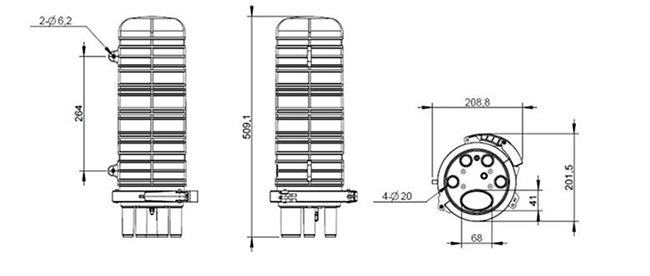

Dimension drawing:

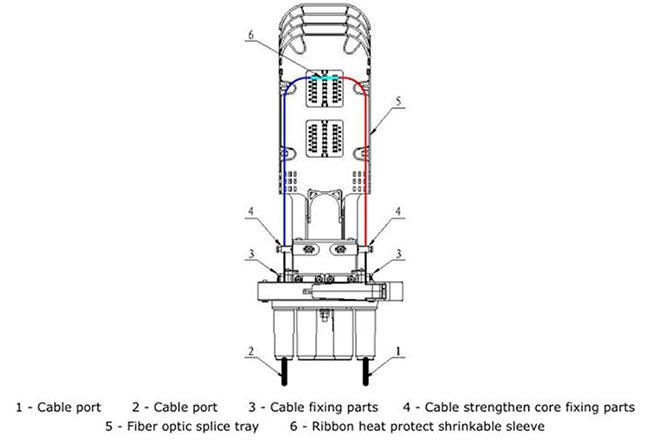

Instruction:
