6 Port 12 Port Fiber Optic Din Rail Mounted Terminal Box with Duplex LC SC ST Adapter

Din Rail Patch Panel with 6 SC Duplex adapter is metal box special designed to be snapped on din rail ,DIN RAIL fiber box accepts one modular panel making it ideal for smaller fibre count applications of up to 12 fibers. This compact enclosure makes it possible to direct terminations or fusion splices in much smaller protected areas.

Features:
ABS plastic material, light weight
Suitable for different adapters: FC, SC, ST, LC …
Max. 12pcs adapters can be loaded
Integrated splice holders (fusion splices)
2pcs cable entry/exit ports; 6pcs/12pcs pigtail entry/exit ports
IP20 protection
Rear or aside DIN rail fixation
2x rear entries (PG 11 cable gland)
White or black color
Dimensions : 133x130x35mm

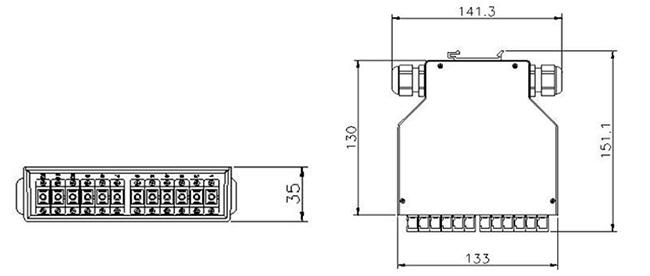

Dimension drawing:

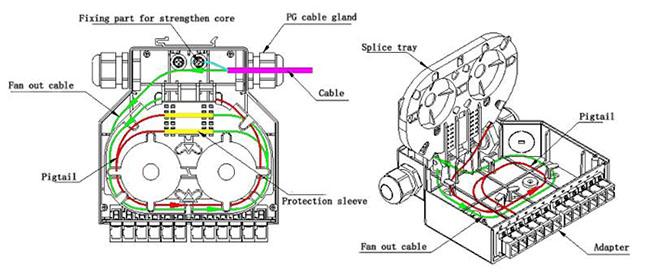

Instruction:

Model:

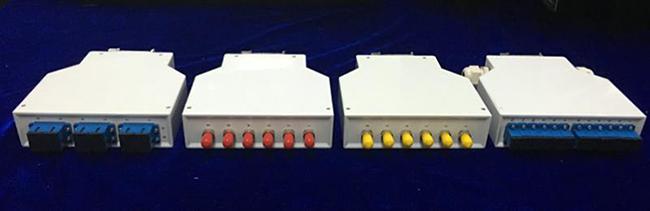

Picture:
