FDH 144 Fibers Optical Cross Connection Cabinet SC Adapters Cold Roll Steel IP65

Outdoor IP65 FDH 144 Fibers optical cross connection cabinet SC adapters

The cabinets are suitable for optical transmission network and the optical access network, to realize the connection and dispatch of the trunk optical cable and distribution optical fiber, and the optical splitter can be placed. Suitable for various optical communication networks, especially FTTH networks.

Features:

1. Standard module installation, each module can be operated independently, easy to install,construct and maintain.

2. Cold roll steel material, good heat insulation, high performance rubber seal, waterproof and dustproof effectively. Fully adapting to outdoor environment. All the inner parts inside the box are made of high quality steel, high strength, anti-aging,long lasting.Special base, the door is fixed on the bottom of the box, easy to open and close, easy to enter and exit the cable.

3. The optic splitter module can be added as required. After the splitter module is released, there is no influence on the capacity of the cabinet.

4. Distribute optical fiber with reasonable way and have good appearance, and the fiber bending radius ≥40mm.

5. Ribbon cables and non-ribbon cables can be used in the box at the same time.

6. Has a reliable cable fixed, stripping, grounding protection device

7. Clear identification, each optical fiber connection and distribution are have clearly marked.

8. Protection class: Outdoor, IP65

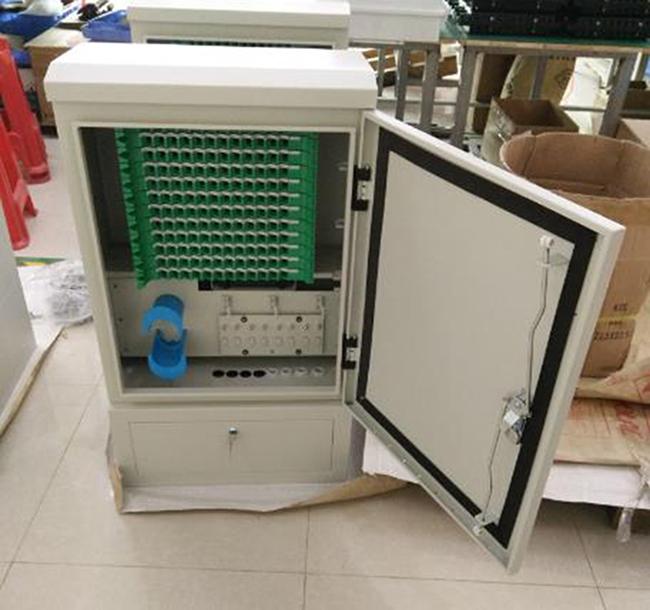

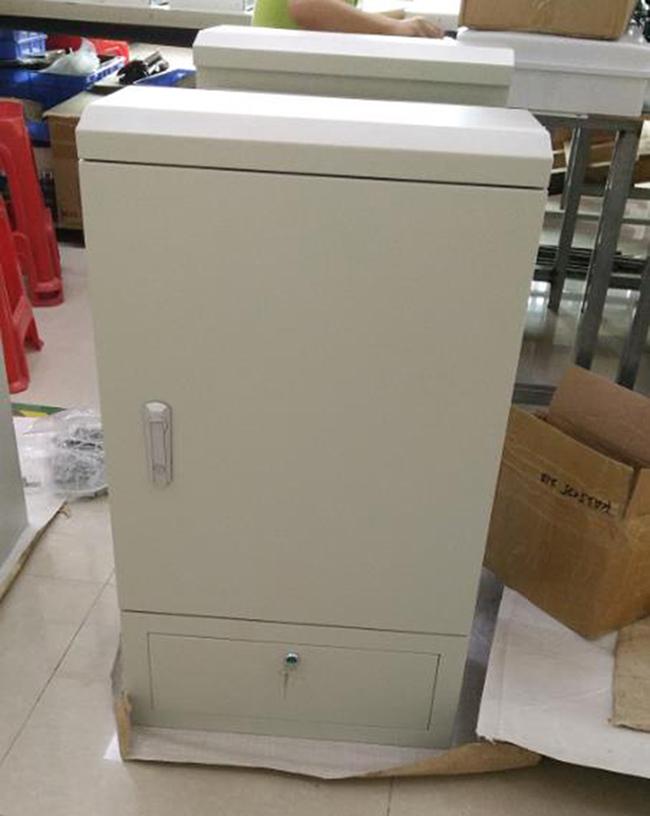

Product pictures:
