Model Number: B0208D
Describtion:
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
(1) High quality ABS plastic.
(2) Outdoor waterproof IP65.
(3) Standard with wall-mount accessory, optional accessory of pole mount kit.
(4) Close with 1 lock and 2 buckle, safe design.
(5) Easy to connect inside with fiber cable, adapter, PLC splitter, pigtails, drop cable with fast connector.
Specification:
| Model | Max. capacity |
Dimension (mm) |
Splice tray | Splitter | Cable entry port | Adapter port |

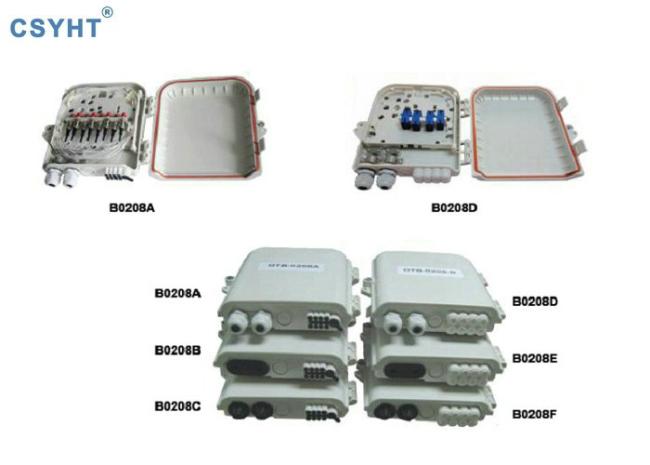

| B0208A | 8FO | 206.8*230.3*52.7 | 8 fibers | 1pc PLC Splitter 1*8 | 2 PG gland & 9 ports | 8 SC simplex |
| B0208B | 8FO | 206.8*213.4*52.7 | 8 fibers | 1pc PLC Splitter 1*8 | 1over port & 9 ports, cable entry without cutting | 8 SC simplex |
| B0208C | 8FO | 206.8*216*52.7 | 8 fibers | 1pc PLC Splitter 1*8 | 2 rubber gasket & 9 ports | 8 SC simplex |
| B0208D | 8FO | 206.8*230.3*52.7 | 8 fibers | 1pc PLC Splitter 1*8 | 2 PG gland & 8 ports | 8 SC simplex |
| B0208E | 8FO | 206.8*215.8*52.7 | 8 fibers | 1pc PLC Splitter 1*8 | 1over port & 8ports, cable entry without cutting | 8 SC simplex |
| B0208F | 8FO | 206.8*21652.7 | 8 fibers | 1pc PLC Splitter 1*8 | 2 rubber gasket & 8 ports | 8 SC simplex |

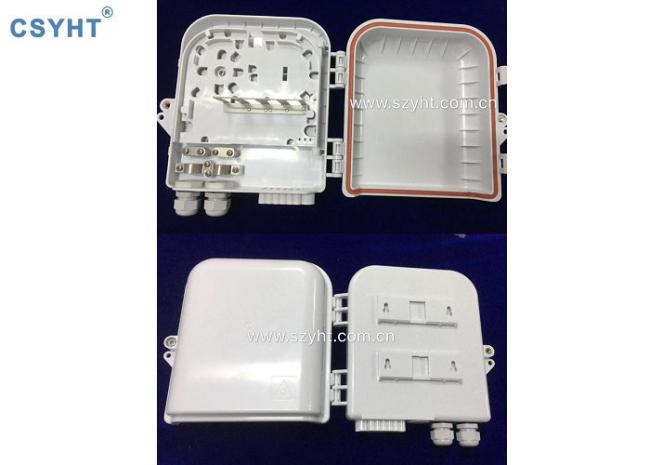

Pictures:
