Inline / Horizontal Type Optical Fiber Joint Enclosure FTTH 12/24 Core Aerial Manhole
FTTH 12/24 Core Aerial/ Manhole Inline/ Horizontal Type Optical Fiber Joint Enclosure
Model Number: CH022
Product Description:
CH022 is a small size fiber optic enclosures for telecommunications, network system, FTTX, FTTH, FTTB...etc. Inside with a fiber cassette 12 slot, max 24 fiber splice connect when fiber protective sleeve double layer inside. It provide the best protective for fiber cable connectivity.
Features:
(1) Small size, reasonable design for cable protection
(2) PP plastic material, white and black color available
(3) With metal plate on screw hole for strengthening box durability
(4) 4 cable port (2 in 2 out) for max.Φ15mm cable entry/exist
(5) 1 splice tray, 12 fiber slot for max. 24 fibers splicing
(6) Dust-proof and waterproof, IP65
(7) Aerial hang application
Specification:
| Dimension(mm) | 245x150x30.1mm |
| Function | Outdoor aerial hang up/Manhole |
| Cable ports2 | 2 inlet & 2 outlet |
| Fiber Optic Splice Trays/ Closure | 1 splice tray OST-005B-A |
| Max Capacity | 12 ( Single ) / 24 (double) |
| Sealing Structure of Box | Silicon Gum Material |

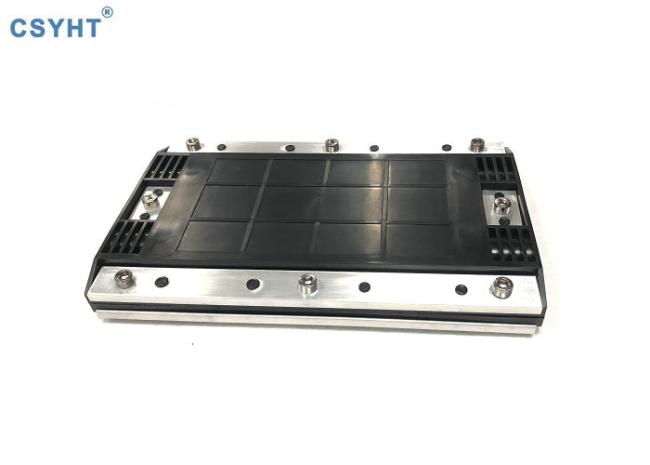

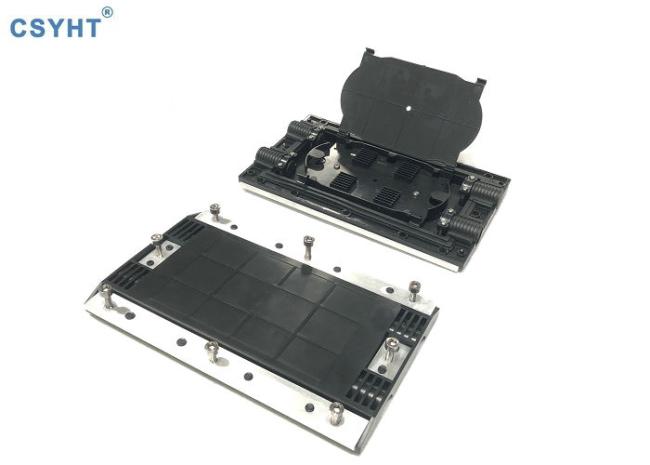

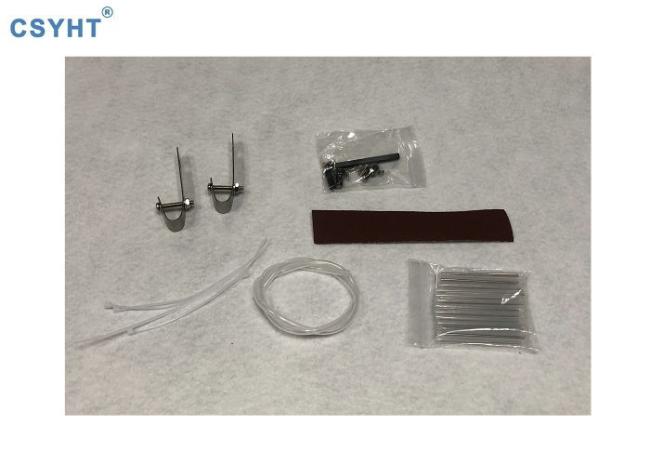

Pictures:
