24 Core FTTH Fiber Optic Terminal Box Outdoor Aerial Mount FDB IP65 Abs Material
Factory Supply Hot Sale FTTH 24 Core fiber optic terminal box outdoor aerial mount FDB
OTB-P039 is an aerial hanged fiber optic terminal box that with splitter cassette for loading PLC 1:4, 1:8, 1:16 splitter and fiber distribution and connection.
Features:
ABS material, black color
Mechanical sealing structure
Waterproof IP65
Two layer space: the upper space for splitter cassette loading PLC 1:4, 1:8, 1:16 splitter;
the lower space for fiber splicing
With 1pc fiber optic splice tray OST-050 for max. 24 fiber splicing
Aerial hanged application
Cable ports: 4pcs entry/exit port suitable for φ6-φ8mm cable
16pcs 3*2mm drop cable port
Support cable entry without cutting.
Specification:
| Model | Dimension | Material | Splice tray | Max. capacity | Cable port | Application |
| OTB-P039 | 413.2x180.2x81mm | ABS | 1pc OST-050 | 24 fibers | 4 ports & 16 drop cable ports | Aerial hanged |

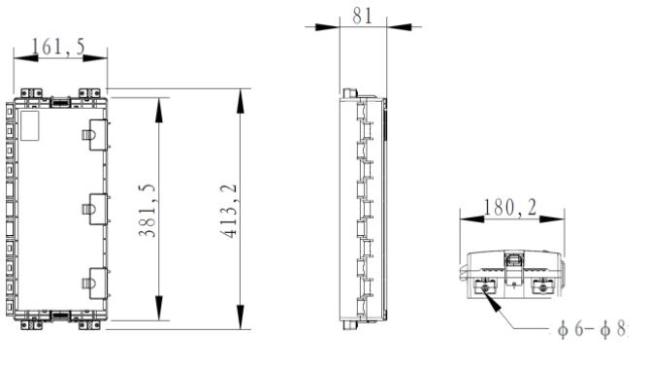

Dimension: (mm)

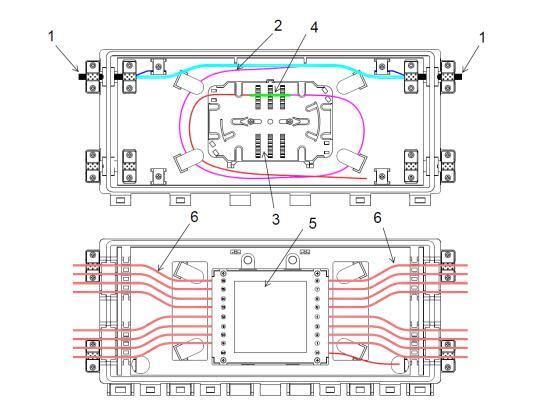

Instruction:
1-Fiber optic cable 2- Stripped out fiber 3- Fiber optic splice tray
4-Fiber optic shrinkable protection sleeve 5- Fiber optic splitter cassette 6- Fiber optic drop cable
Packing information:
12pcs per carton, each carton 58x44x38cm
Accessories:
| Item | Name | Specification | Unit | Qty |
| 1 | Heat shrinkable sleeve | 45*2.6*1.2mm | PCS | As per capacity |
| 2 | Cable tie | 3mm*120mm | PCS | 5 |
| 3 | Aerial hanged kit | OTB-P038-030 | PCS |
2 |

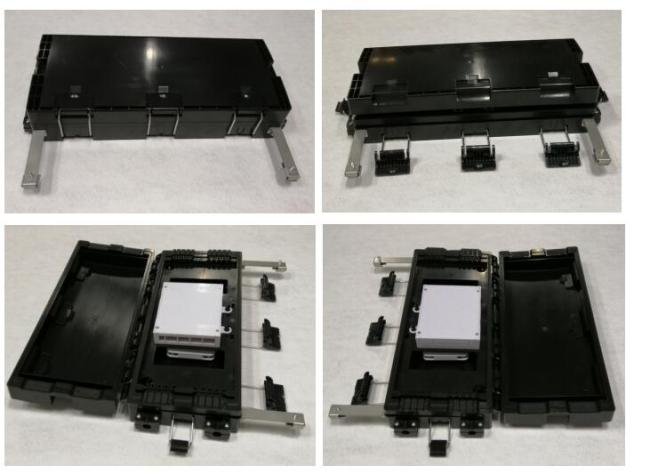

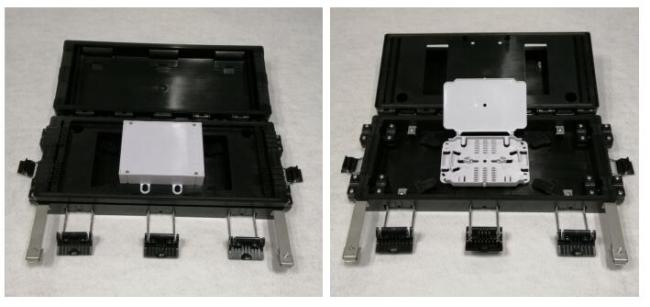

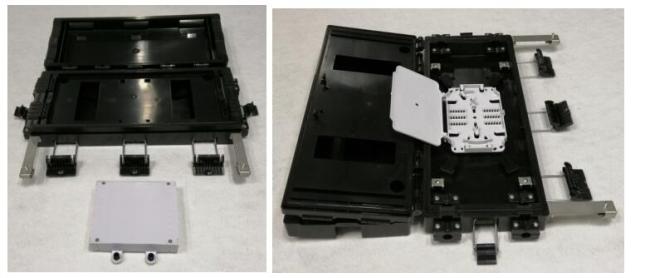

Images:
